Guhring UNF Gun Taps HSS-E Gold Band 1/4 -28

Product Code: 5727 6,350

$114.82$104.38 Ex. GST

Product Code: 5727 6,350 SKU 5727 6,350 Category CUTTING TOOLS (HSS & Carbide)

Guhring UNF Gun Taps HSS-E Gold Band 1/4 -28

Guhring UNF Gun Taps HSS-E Gold Band 1/4 -28 - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

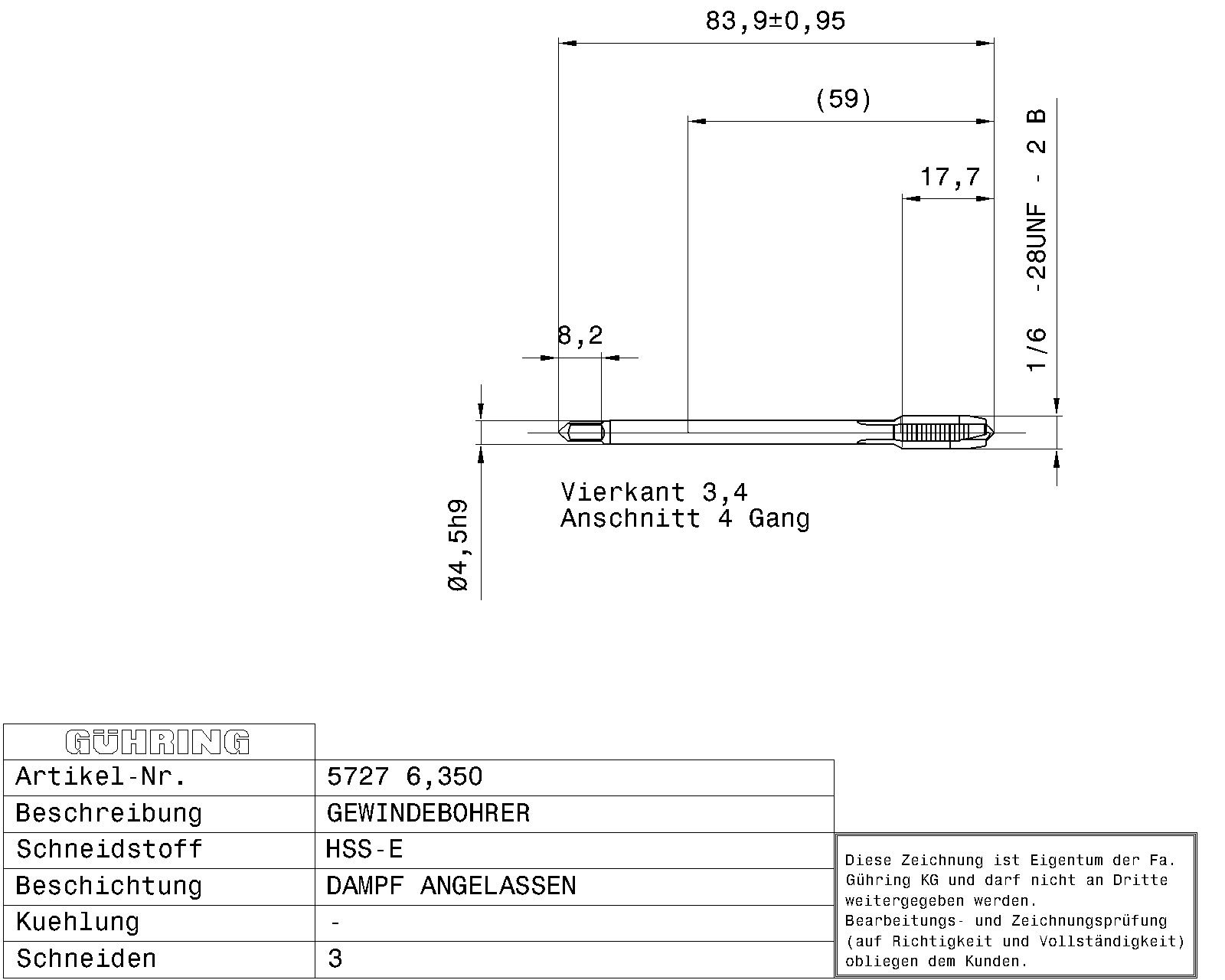

Machine taps for UNF-threads 1/4 – 28 / 2B / ~DIN 374 / DIN 2184-1 / HSS-E / steam tempered / Type: N / Form: B / through hole / Cutting direction: right-hand

Additional information

Weight	0.0150 kg
Dimensions
barcode
Additional Information	Connection code machine side: straight shank Internal cooling: without Norm: ~DIN 374 Surface: steam tempered Discount group: 203 Type: 5727, N Cutting direction: right-hand Material: HSS-E Additional information: Internal threading Form: B Coloured ring: gold ring Threads: UNF Tolerance class thread: 2B Hole type: through hole Groove: straight-fluted cutting edges Chamfer lead length: 3.5-5.5 Code no.: 6.350 Weight: 0.015 No of cutting edges: 3 Total length: 80.000 Thread length: 16.000 Groove length: 26.000 Usable length: 30.000 Norm 2: DIN 2184-1 Wrench opening 1: 3.400 Core hole Ø: 5.50 Shank Ø: 4.500 Nominal dimension thread: 1/4 – 28 Pitch: 0.907 External Ø: 6.420 Pitch thread/inch: 28.000 Reach length: 59.000 Statistical goods number: 82074010

Brand

Guhring
