Guhring UNF Spiral Taps HSS-E Blue Band TiAlN Coated 3/8

Product Code: 392 9,525

$185.82$168.93 Ex. GST

Product Code: 392 9,525 SKU 392 9,525 Category CUTTING TOOLS (HSS & Carbide)

Guhring UNF Spiral Taps HSS-E Blue Band TiAlN Coated 3/8

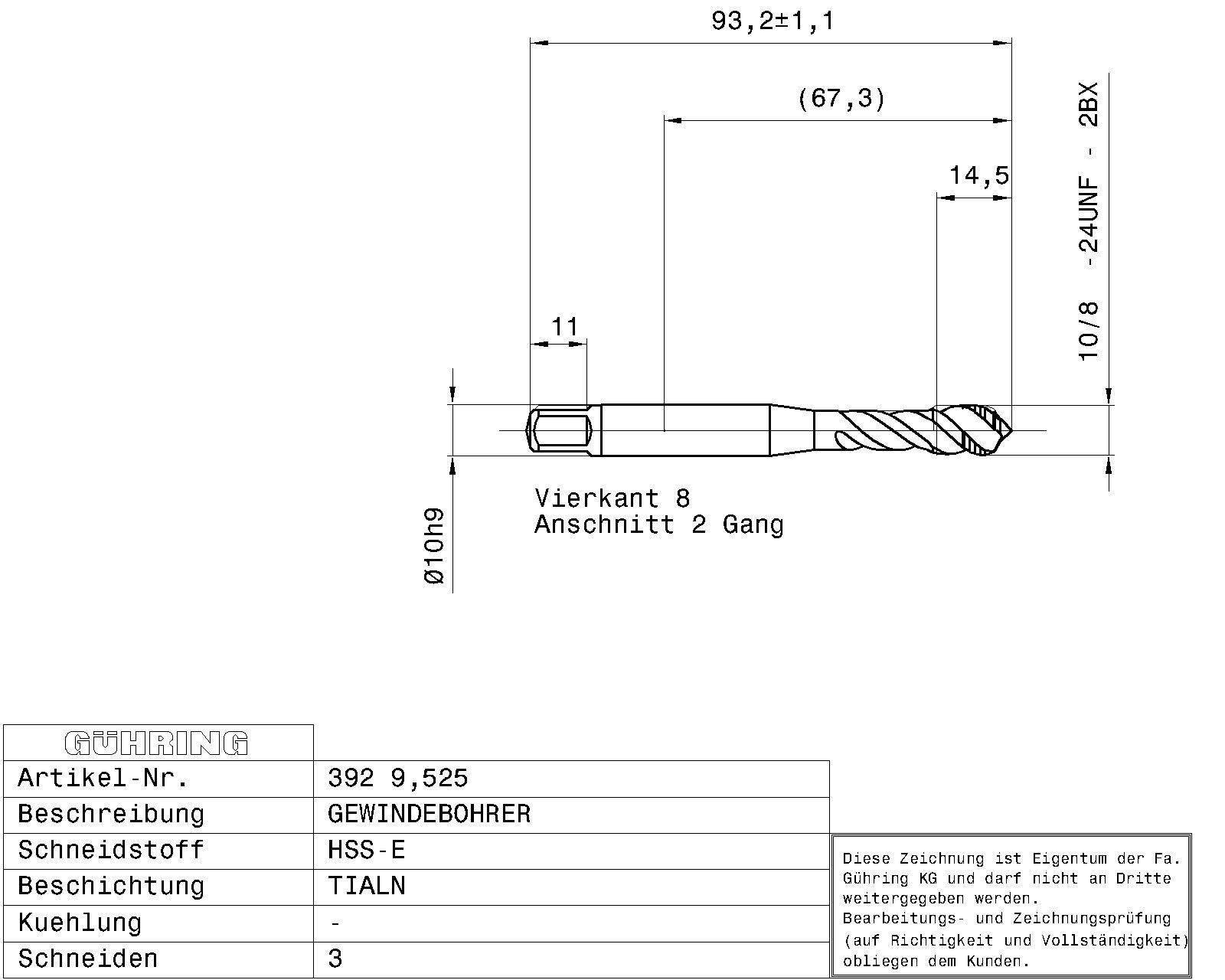

Guhring UNF Spiral Taps HSS-E Blue Band TiAlN Coated 3/8 - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Machine taps for UNF-threads 3/8 – 24 / 2BX / 3xD / ~DIN 371 / DIN 2184-1 / HSS-E / TiAlN / Type: VA R45 / Form: C / blind hole / Cutting direction: right-hand

Additional information

Weight	0.0470 kg
Dimensions
barcode
Additional Information	Connection Code Machine Side: straight shank Internal Cooling: without Norm: ~DIN 371 Surface: TiAlN Discount Group: 103 Type: 392 Cutting Direction: right-hand Type: VA R45 Material: HSS-E Additional Information: Internal threading Form: C Coloured Ring: blue ring Threads: UNF Tolerance Class Thread: 2BX Hole Type: blind hole Groove: 45° right hand helix Chamfer Lead Length: 2-3 Code No.: 9.525 Weight: 0.047 No. of Cutting Edges: 3 Total Length: 90.000 Thread Length: 11.500 Groove Length: 31.000 Usable Length: 35.000 Norm 2: DIN 2184-1 Wrench Opening 1: 8.000 Neck Ø: 7.600 Core Hole Ø: 8.50 Shank Ø: 10.000 Nominal Dimension Thread: 3/8 – 24 External Ø: 9.600 Pitch Thread/Inch: 24.000 Reach Length: 68.000 Statistical Goods Number: 82074010

Brand

Guhring
