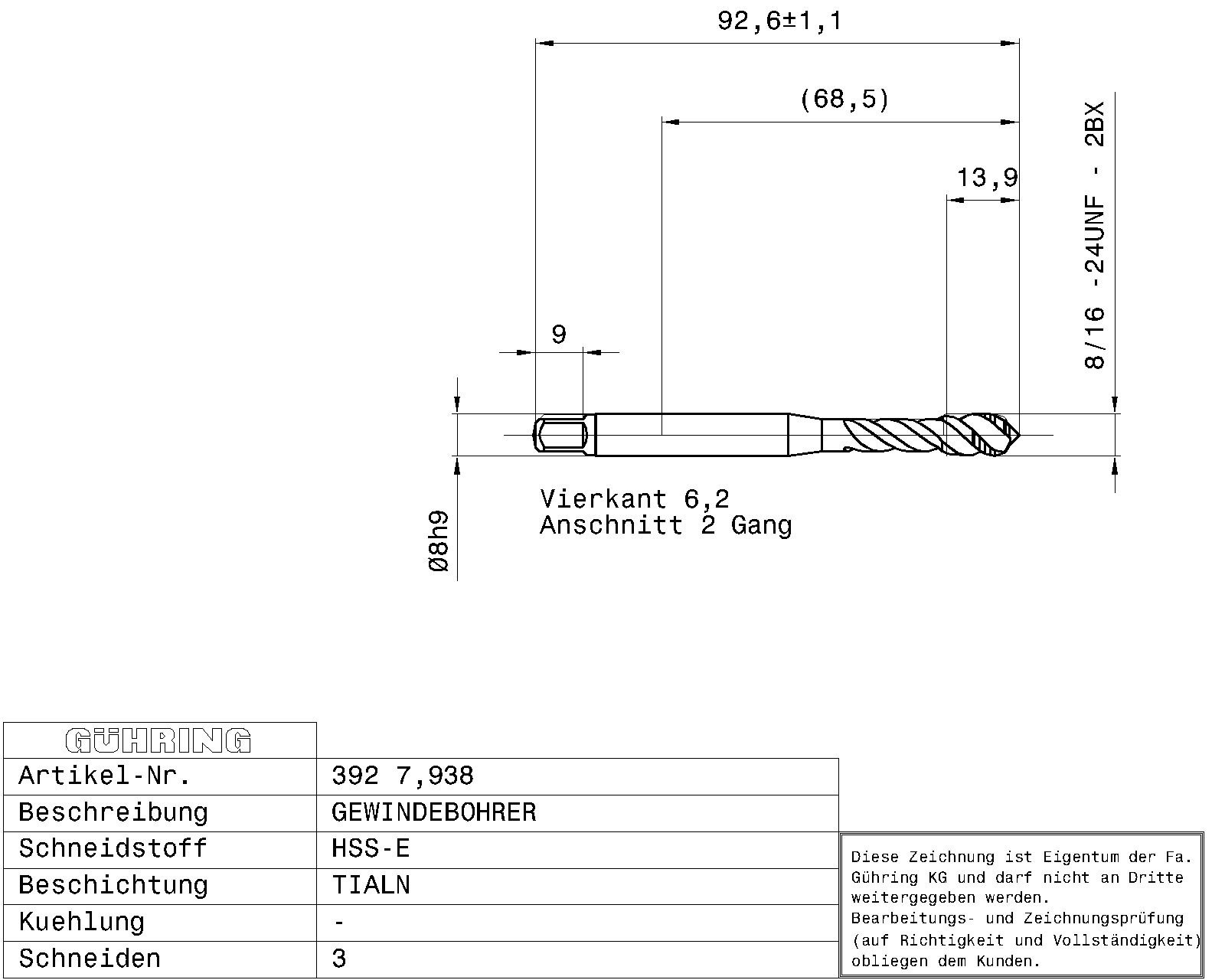

Guhring UNF Spiral Taps HSS-E Blue Band TiAlN Coated 5/16

Connection Code Machine Side: straight shank
Internal Cooling: without
Norm: ~DIN 371
Surface: TiAlN
Discount Group: 103
Type: 392
Cutting Direction: right-hand
Type: VA R45
Material: HSS-E
Additional Information: Internal threading
Form: C
Coloured Ring: blue ring
Threads: UNF
Tolerance Class Thread: 2BX
Hole Type: blind hole
Groove: 45° right hand helix
Chamfer Lead Length: 2-3
Code No.: 7.938
Weight: 0.033
No. of Cutting Edges: 3
Total Length: 90.000
Thread Length: 11.500
Groove Length: 31.000
Usable Length: 35.000
Norm 2: DIN 2184-1
Wrench Opening 1: 6.200
Neck Ø: 6.200
Core Hole Ø: 6.90
Shank Ø: 8.000
Nominal Dimension Thread: 5/16 – 24
External Ø: 8.010
Pitch Thread/Inch: 24.000
Reach Length: 69.000
Statistical Goods Number: 82074010
