Guhring UNF Spiral Taps HSS-E Blue Band TiAlN Coated 7/8

Product Code: 392 22,225

$494.67$449.70 Ex. GST

Product Code: 392 22,225 SKU 392 22,225 Category CUTTING TOOLS (HSS & Carbide)

Guhring UNF Spiral Taps HSS-E Blue Band TiAlN Coated 7/8

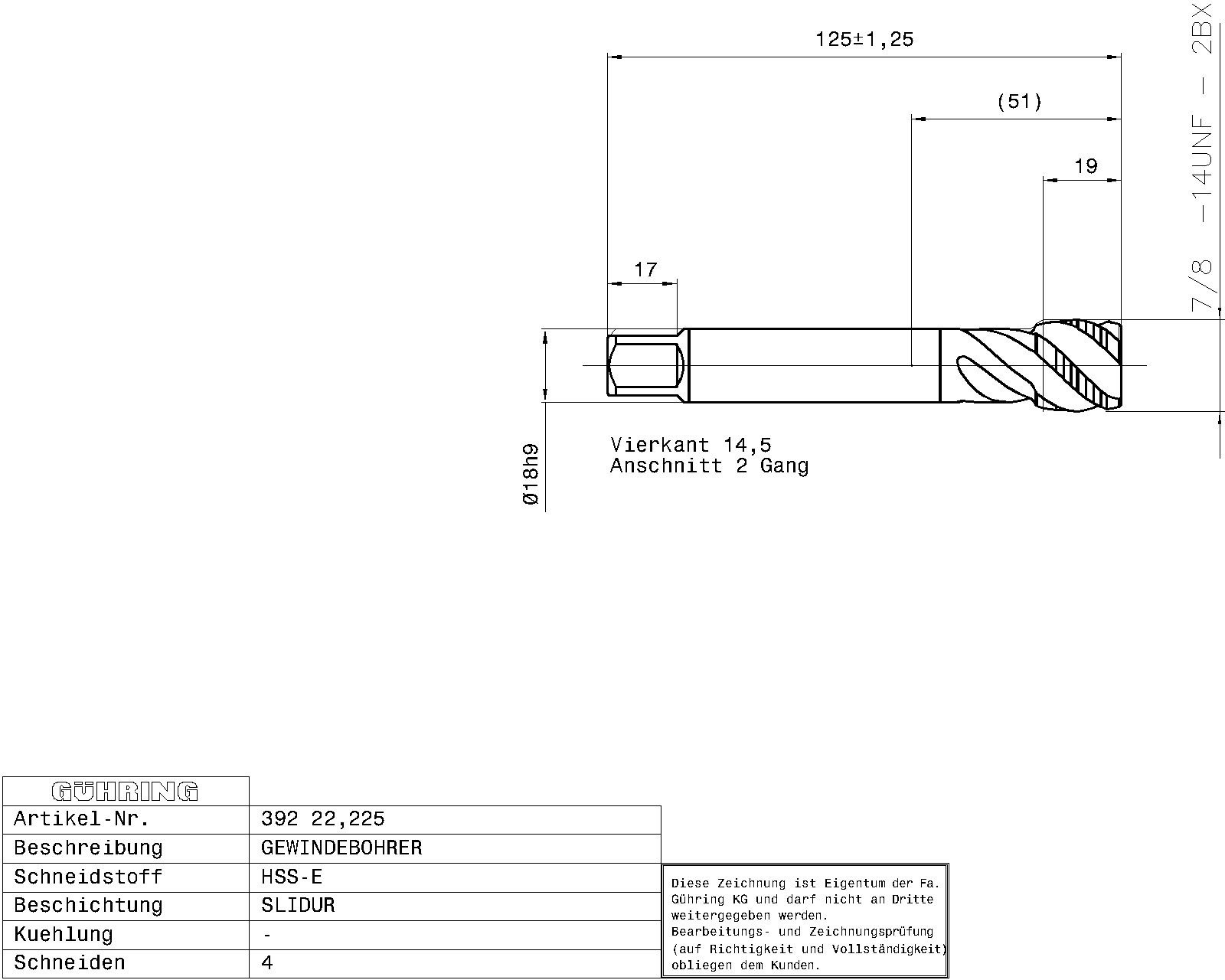

Guhring UNF Spiral Taps HSS-E Blue Band TiAlN Coated 7/8 - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Machine taps for UNF-threads 7/8 – 14 / 2BX / 3xD / ~DIN 374 / DIN 2184-1 / HSS-E / TiAlN / Type: VA R45 / Form: C / blind hole / Cutting direction: right-hand

Additional information

Weight	0.2360 kg
Dimensions
barcode
Additional Information	Connection Code Machine Side: straight shank Internal Cooling: without Norm: ~DIN 374 Surface: TiAlN Discount Group: 103 Type: 392 Cutting Direction: right-hand Type: VA R45 Material: HSS-E Additional Information: Internal threading Form: C Coloured Ring: blue ring Threads: UNF Tolerance Class Thread: 2BX Hole Type: blind hole Groove: 45° right hand helix Chamfer Lead Length: 2-3 Code No.: 22.225 Weight: 0.236 No. of Cutting Edges: 4 Total Length: 125.000 Thread Length: 19.000 Groove Length: 40.000 Usable Length: 44.000 Norm 2: DIN 2184-1 Wrench Opening 1: 14.500 Neck Ø: 17.800 Core Hole Ø: 20.40 Shank Ø: 18.000 Nominal Dimension Thread: 7/8 – 14 External Ø: 22.320 Pitch Thread/Inch: 14.000 Reach Length: 51.000 Statistical Goods Number: 82074010

Brand

Guhring
