Guhring UNF Spiral Taps HSS-E Gold Band 3/8 -24

Product Code: 5728 9,525

$105.05$95.50 Ex. GST

Product Code: 5728 9,525 SKU 5728 9,525 Category CUTTING TOOLS (HSS & Carbide)

Guhring UNF Spiral Taps HSS-E Gold Band 3/8 -24

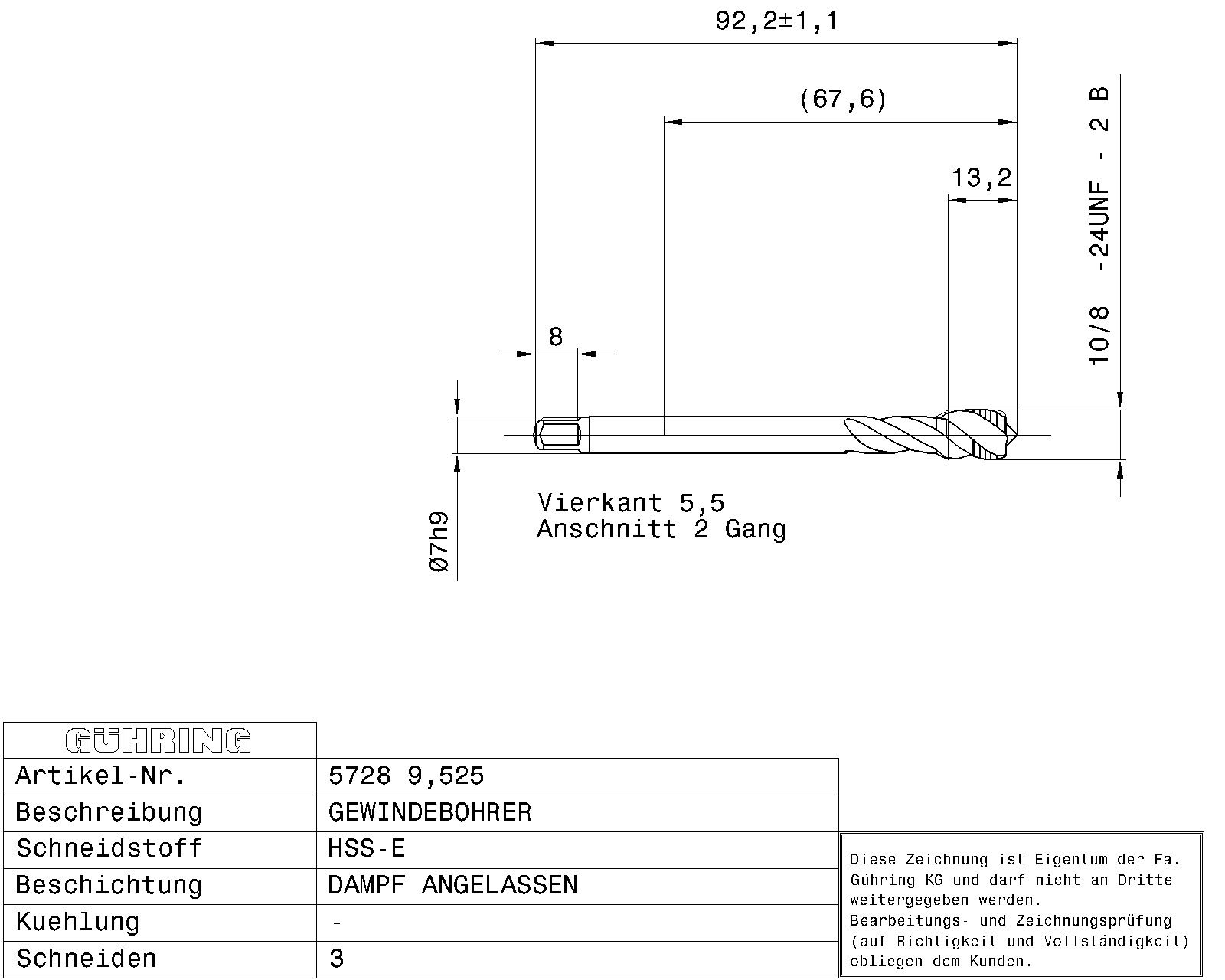

Guhring UNF Spiral Taps HSS-E Gold Band 3/8 -24 - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Machine taps for UNF-threads 3/8 – 24 / 2B / ~DIN 374 / DIN 2184-1 / HSS-E / steam tempered / Type: N R40 / Form: C / blind hole / Cutting direction: right-hand

Additional information

Weight	0.0300 kg
Dimensions
barcode
Additional Information	Connection code machine side: straight shank Internal cooling: without Norm: ~DIN 374 Surface: steam tempered Discount group: 203 Type: 5728, N R40 Material: HSS-E Additional information: Internal threading Form: C Coloured ring: gold ring Threads: UNF Tolerance class thread: 2B Hole type: blind hole Groove: 40° right hand helix Chamfer lead length: 2-3 Code no.: 9.525 Weight: 0.030 No of cutting edges: 3 Total length: 90.000 Thread length: 11.500 Groove length: 31.000 Usable length: 35.000 Norm 2: DIN 2184-1 Wrench opening 1: 5.500 Core hole Ø: 8.50 Shank Ø: 7.000 Nominal dimension thread: 3/8 – 24 Pitch: 1.058 External Ø: 9.600 Pitch thread/inch: 24.000 Reach length: 68.000 Statistical goods number: 82074010

Brand

Guhring
