Guhring UNF Spiral Taps HSS-E Gold Band 5/8 -18

Product Code: 5728 15,875

$217.99$198.17 Ex. GST

Product Code: 5728 15,875 SKU 5728 15,875 Category CUTTING TOOLS (HSS & Carbide)

Guhring UNF Spiral Taps HSS-E Gold Band 5/8 -18

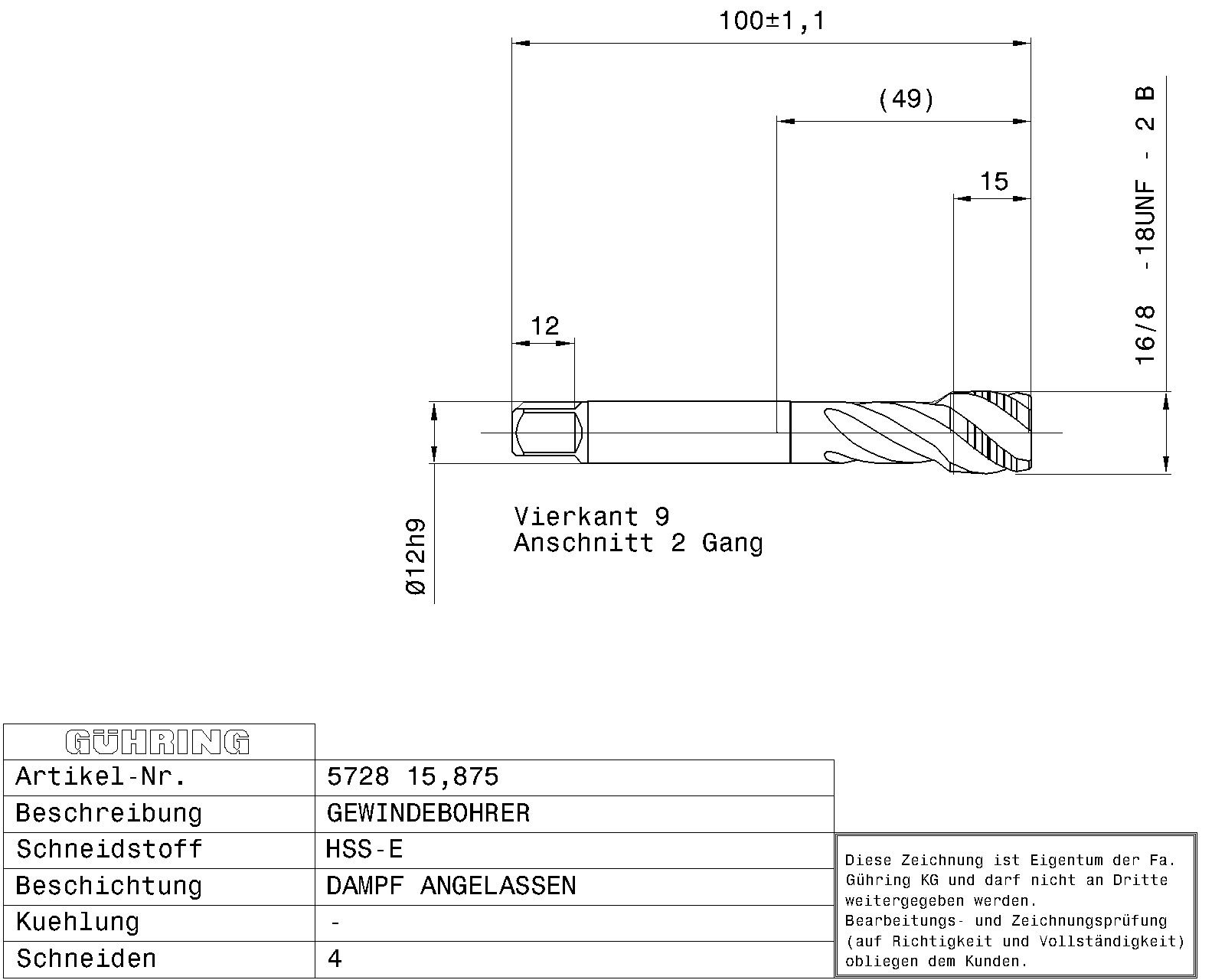

Guhring UNF Spiral Taps HSS-E Gold Band 5/8 -18 - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Machine taps for UNF-threads 5/8 – 18 / 2B / ~DIN 374 / DIN 2184-1 / HSS-E / steam tempered / Type: N R40 / Form: C / blind hole / Cutting direction: right-hand

Additional information

Weight	0.0830 kg
Dimensions
barcode
Additional Information	Connection code machine side: straight shank Internal cooling: without Norm: ~DIN 374 Surface: steam tempered Discount group: 203 Type: 5728, N R40 Material: HSS-E Additional information: Internal threading Form: C Coloured ring: gold ring Threads: UNF Tolerance class thread: 2B Hole type: blind hole Groove: 40° right hand helix Chamfer lead length: 2-3 Code no.: 15.875 Weight: 0.083 No of cutting edges: 4 Total length: 100.000 Thread length: 15.000 Groove length: 40.000 Usable length: 44.000 Norm 2: DIN 2184-1 Wrench opening 1: 9.000 Neck Ø: 11.800 Core hole Ø: 14.50 Shank Ø: 12.000 Nominal dimension thread: 5/8 – 18 Pitch: 1.411 External Ø: 15.970 Pitch thread/inch: 18.000 Reach length: 49.000 Statistical goods number: 82074010

Brand

Guhring
