Guhring UNF Spiral Taps HSS-E Gold Band NR.10-32

Product Code: 5728 4,826

$81.68$74.25 Ex. GST

Product Code: 5728 4,826 SKU 5728 4,826 Category CUTTING TOOLS (HSS & Carbide)

Guhring UNF Spiral Taps HSS-E Gold Band NR.10-32

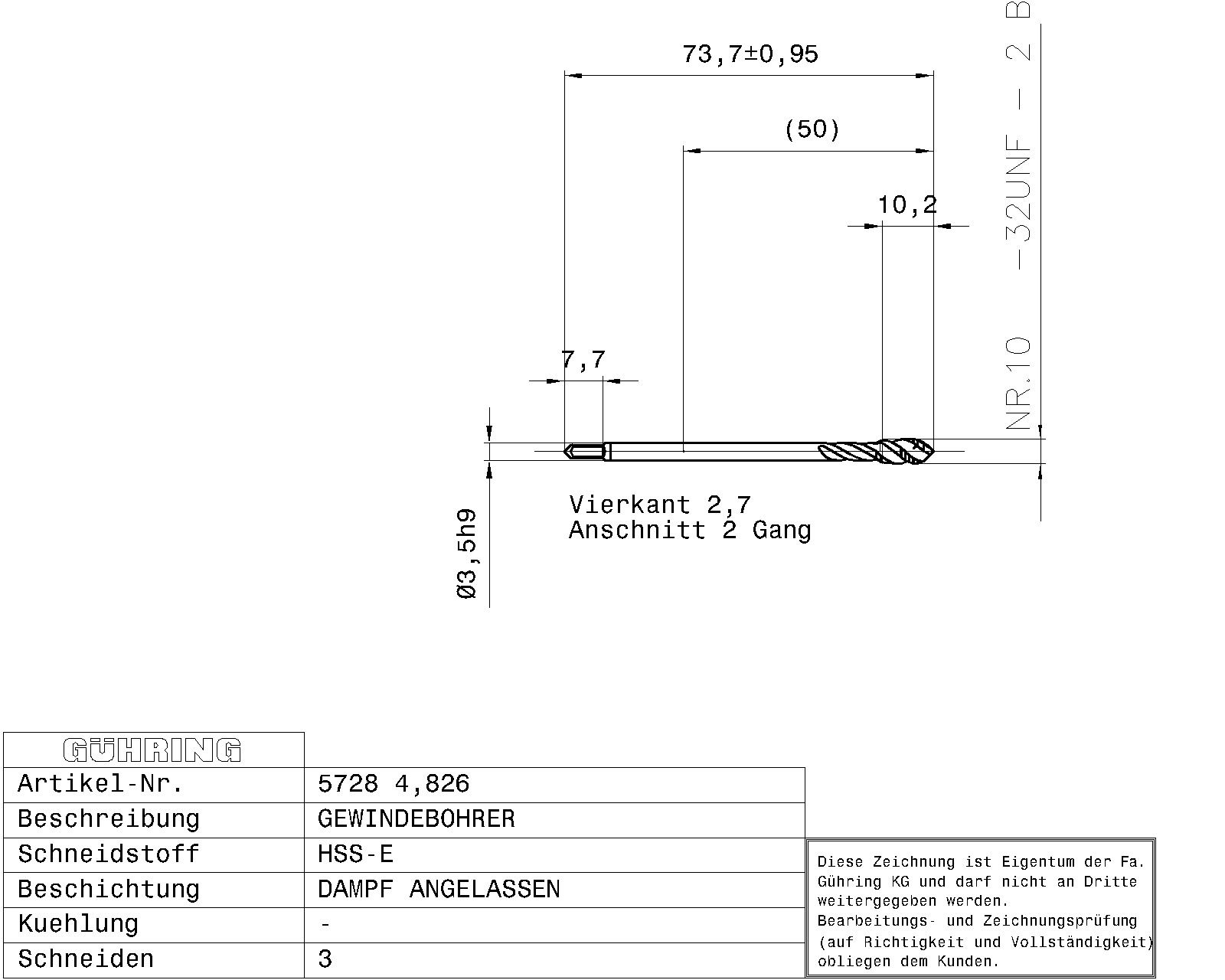

Guhring UNF Spiral Taps HSS-E Gold Band NR.10-32 - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Machine taps for UNF-threads 10 – 32 / 2B / ~DIN 374 / DIN 2184-1 / HSS-E / steam tempered / Type: N R40 / Form: C / blind hole / Cutting direction: right-hand

Additional information

Weight	0.0070 kg
Dimensions
barcode
Additional Information	Connection code machine side: straight shank Internal cooling: without Norm: ~DIN 374 Surface: steam tempered Discount group: 203 Type: 5728, N R40 Material: HSS-E Additional information: Internal threading Form: C Coloured ring: gold ring Threads: UNF Tolerance class thread: 2B Hole type: blind hole Groove: 40° right hand helix Chamfer lead length: 2-3 Code no.: 4.826 Weight: 0.007 No of cutting edges: 3 Total length: 70.000 Thread length: 8.500 Groove length: 21.000 Usable length: 25.000 Norm 2: DIN 2184-1 Wrench opening 1: 2.700 Core hole Ø: 4.10 Shank Ø: 3.500 Nominal dimension thread: 10 – 32 Pitch: 0.794 External Ø: 4.880 Pitch thread/inch: 32.000 Reach length: 50.000 Statistical goods number: 82074010

Brand

Guhring
