Guhring W 1/2 BSW Gun Nose Taps HSS-E Blue band Sirius Coated

Description

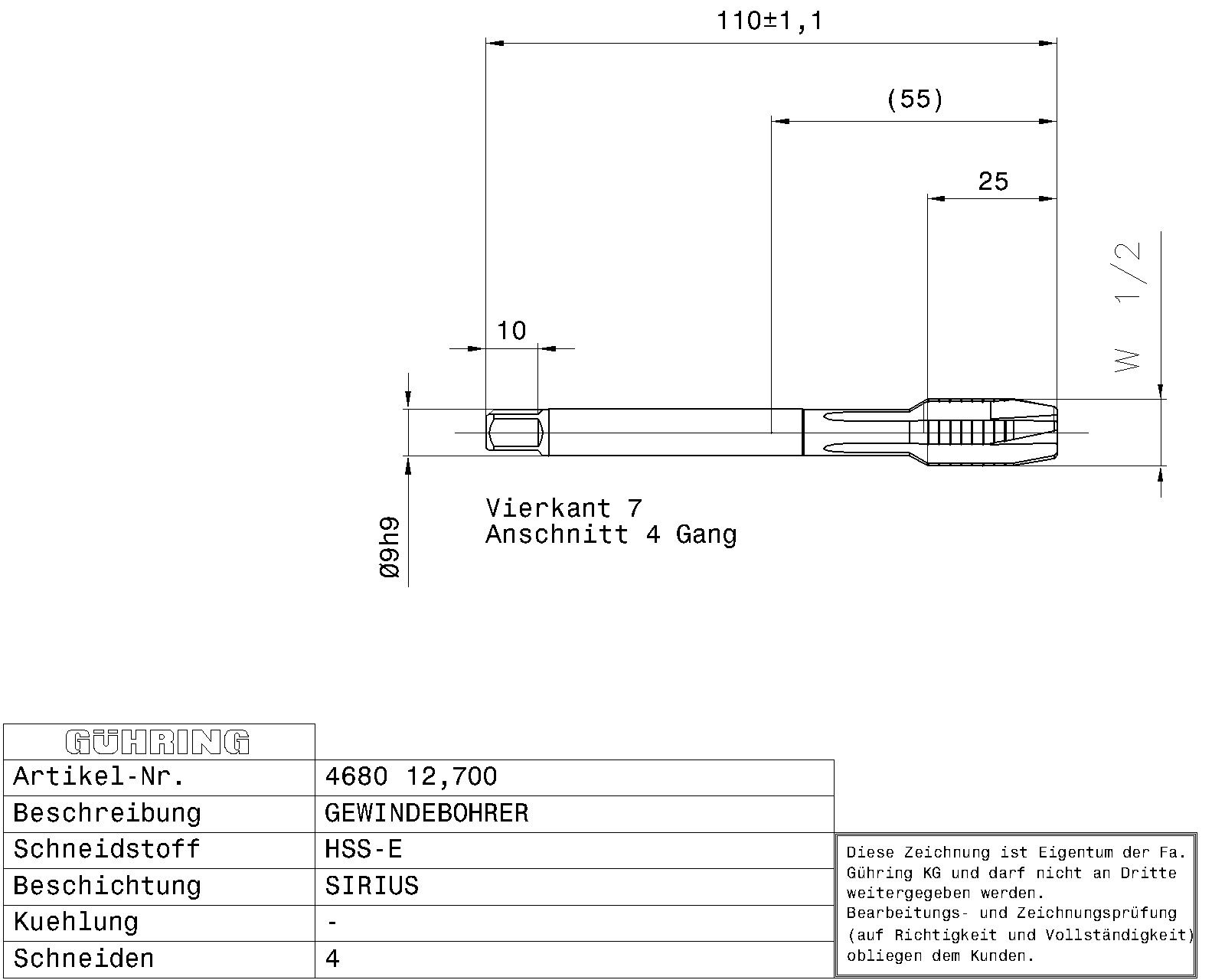

Machine taps for BSW-threads W1/2 / 3xD / ~DIN 376 / DIN 2184-1 / HSS-E / Sirius / Type: VA / Form: B / through hole / Cutting direction: right-hand

Weight	0.0620 kg
Dimensions
barcode	9046800127000
Additional Information	Connection code machine side: straight shank Internal cooling: without Norm: DIN 376 Surface: Sirius Discount group: 103 Type: 4680 Cutting direction: right-hand Type: VA Material: HSS-E Additional information: Internal threading Form: B Coloured ring: blue ring Threads: BSW Hole type: through hole Groove: straight-fluted cutting edges Chamfer lead length: 3.5-5.5 Code no.: 12.700 Weight: 0.062 No of cutting edges: 4 Total length: 110.000 Thread length: 25.000 Groove length: 45.000 Usable length: 49.000 Norm 2: DIN 2184-1 Wrench opening 1: 7.000 Core hole Ø: 10.50 Shank Ø: 9.000 Nominal dimension thread: W1/2 External Ø: 12.780 Pitch thread/inch: 12.000 Reach length: 55.000 Statistical goods number: 82074010
