Guhring W 1/2 BSW Gun Nose Taps HSS-E Yellow band

Product Code: 2893 12,700

$214.20$194.73 Ex. GST

Product Code: 2893 12,700 SKU 2893 12,700 Category CUTTING TOOLS (HSS & Carbide)

Guhring W 1/2 BSW Gun Nose Taps HSS-E Yellow band

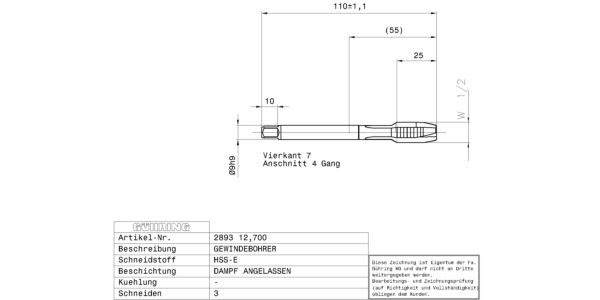

Guhring W 1/2 BSW Gun Nose Taps HSS-E Yellow band - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Machine taps for BSW-threads W1/2 / 3xD / ~DIN 376 / DIN 2184-1 / HSS-E / steam tempered / Type: N / Form: B / through hole / Cutting direction: right-hand

Additional information

Weight	0.0610 kg
Dimensions
barcode
Additional Information	Connection code machine side: Straight shank Internal cooling: Without Norm: DIN 376 Surface: Steam tempered Discount group: 103 Type: 2893 Cutting direction: Right-hand Type: N Material: HSS-E Additional information: Internal threading Form: B Coloured ring: Yellow ring Threads: BSW Hole type: Through hole Groove: Straight-fluted cutting edges Chamfer lead length: 3.5-5.5 Code no.: 12.700 Weight: 0.061 No of cutting edges: 3 Total length: 110.000 Thread length: 25.000 Groove length: 45.000 Usable length: 49.000 Norm 2: DIN 2184-1 Wrench opening 1: 7.000 Neck Ø: 8.800 Core hole Ø: 10.50 Shank Ø: 9.000 Nominal dimension thread: W1/2 Pitch: 2.117 External Ø: 12.780 Pitch thread/inch: 12.000 Reach length: 55.000 Statistical goods number: 82074010

Brand

Guhring
