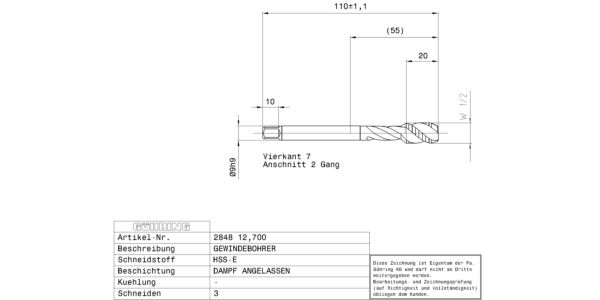

Guhring W 1/2 BSW Spiral Taps HSS-E Yellow band

Connection Code Machine Side: straight shank
Internal Cooling: without
Norm: ~DIN 376
Surface: steam tempered
Discount Group: 103
Type: 2848
Cutting Direction: right-hand
Type: N R40
Material: HSS-E
Additional Information: Internal threading
Form: C
Coloured Ring: yellow ring
Threads: BSW
Hole Type: blind hole
Groove: 40° right hand helix
Chamfer Lead Length: 2-3
Code No.: 12.700
Weight: 0.050
No. of Cutting Edges: 3
Total Length: 110.000
Thread Length: 20.000
Groove Length: 45.000
Usable Length: 49.000
Norm 2: DIN 2184-1
Wrench Opening 1: 7.000
Neck Ø: 8.800
Core Hole Ø: 10.50
Shank Ø: 9.000
Nominal Dimension Thread: W1/2
Pitch: 2.117
External Ø: 12.780
Pitch Thread/Inch: 12.000
Reach Length: 55.000
Statistical Goods Number: 82074010
