Guhring W 1/4 BSW Gun Nose Taps HSS-E Yellow band

Product Code: 2892 6,350

$116.58$105.98 Ex. GST

Product Code: 2892 6,350 SKU 2892 6,350 Category CUTTING TOOLS (HSS & Carbide)

Guhring W 1/4 BSW Gun Nose Taps HSS-E Yellow band

Guhring W 1/4 BSW Gun Nose Taps HSS-E Yellow band - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

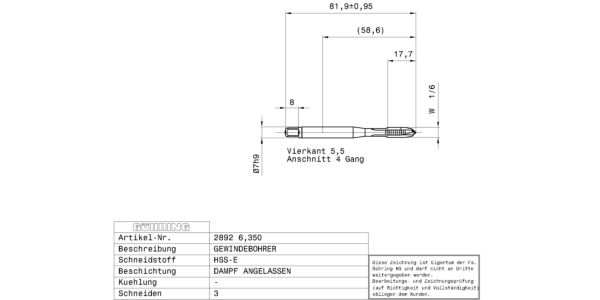

Machine taps for BSW-threads W1/4 / 3xD / ~DIN 371 / DIN 2184-1 / HSS-E / steam tempered / Type: N / Form: B / through hole / Cutting direction: right-hand

Additional information

Weight	0.0180 kg
Dimensions
barcode
Additional Information	Connection code machine side: Straight shank Internal cooling: Without Norm: DIN 371 Surface: Steam tempered Discount group: 103 Type: 2892 Cutting direction: Right-hand Type: N Material: HSS-E Additional information: Internal threading Form: B Coloured ring: Yellow ring Threads: BSW Hole type: Through hole Groove: Straight-fluted cutting edges Chamfer lead length: 3.5-5.5 Code no.: 6.350 Weight: 0.018 No of cutting edges: 3 Total length: 80.000 Thread length: 16.000 Groove length: 26.000 Usable length: 30.000 Norm 2: DIN 2184-1 Wrench opening 1: 5.500 Neck Ø: 4.900 Core hole Ø: 5.10 Shank Ø: 7.000 Nominal dimension thread: W1/4 Pitch: 1.270 External Ø: 6.410 Pitch thread/inch: 20.000 Reach length: 59.000 Statistical goods number: 82074010

Brand

Guhring
