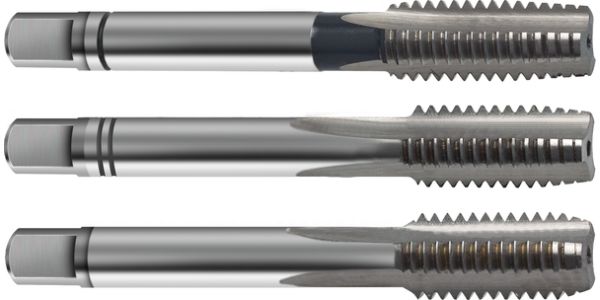

Guhring W 1/4 x 20 3pce Hand Tap Set BSW Threads HSS

Description

Set Hand taps for BSW-threads W1/4 / ~DIN 352 / DIN 2184-2 / HSS / bright / Type: N / through-, blind hole / Cutting direction: right-hand

Weight	0.0460 kg
Dimensions
barcode
Additional Information	Connection code machine side: straight shank Internal cooling: without Norm: ~DIN 352 Surface: bright Discount group: 118 Type: 954 Cutting direction: right-hand Type: N Material: HSS Additional information: Set Threads: BSW Hole type: through-, blind hole Code no.: 6.350 Weight: 0.046 Number parts per set: 3.00 No of cutting edges: 3 Total length: 56.000 Thread length: 16.000 Groove length: 23.000 Norm 2: DIN 2184-2 Wrench opening 1: 4.900 Neck Ø: 4.800 Core hole Ø: 5.10 Shank Ø: 6.000 Nominal dimension thread: W1/4 Pitch: 1.270 Pitch thread/inch: 20.000 Statistical goods number: 82074010
