Guhring W 1" BSW Spiral Taps HSS-E Blue band TiALN coated

Description

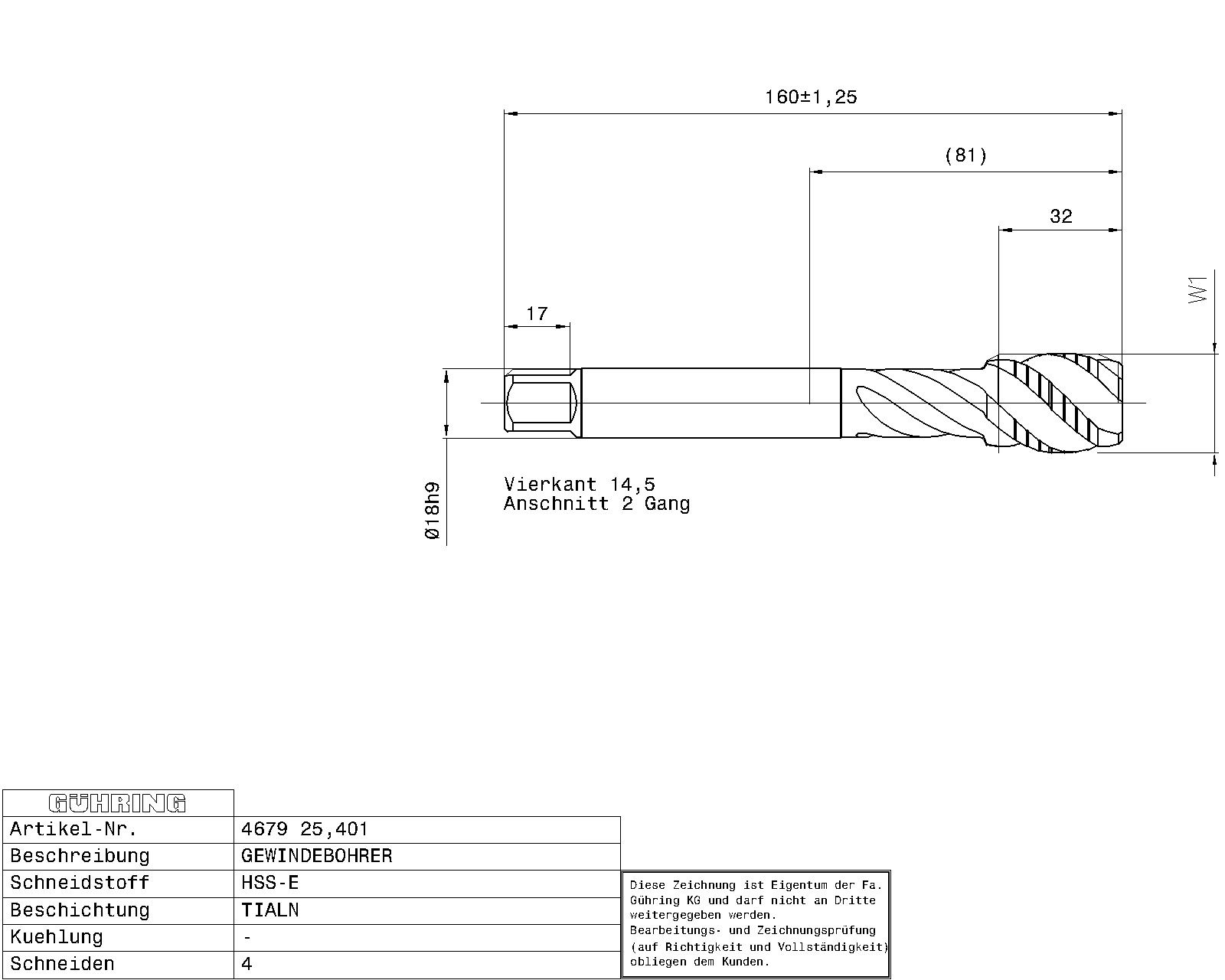

Machine taps for BSW-threads W1 / 3xD / ~DIN 376 / DIN 2184-1 / HSS-E / TiAlN / Type: VA R45 / Form: C / blind hole / Cutting direction: right-hand

Weight	0.3050 kg
Dimensions
barcode	9046790254010
Additional Information	Connection code machine side: straight shank Internal cooling: without Norm: DIN 376 Surface: TiAlN Discount group: 103 Type: 4679 Cutting direction: right-hand Type: VA R45 Material: HSS-E Additional information: Internal threading Form: C Coloured ring: blue ring Threads: BSW Hole type: blind hole Groove: 45° right hand helix Chamfer lead length: 2-3 Code no.: 25.401 Weight: 0.305 No of cutting edges: 4 Total length: 160.000 Thread length: 32.000 Groove length: 69.000 Usable length: 73.000 Norm 2: DIN 2184-1 Wrench opening 1: 14.500 Core hole Ø: 22.00 Shank Ø: 18.000 Nominal dimension thread: W1 External Ø: 25.469 Pitch thread/inch: 8.000 Reach length: 81.000 Statistical goods number: 82074010
