Guhring W 3/16 BSW Spiral Taps HSS-E Blue band TiALN coated

Product Code: 4679 4,762

$139.66$126.96 Ex. GST

Product Code: 4679 4,762 SKU 4679 4,762 Category CUTTING TOOLS (HSS & Carbide)

Guhring W 3/16 BSW Spiral Taps HSS-E Blue band TiALN coated

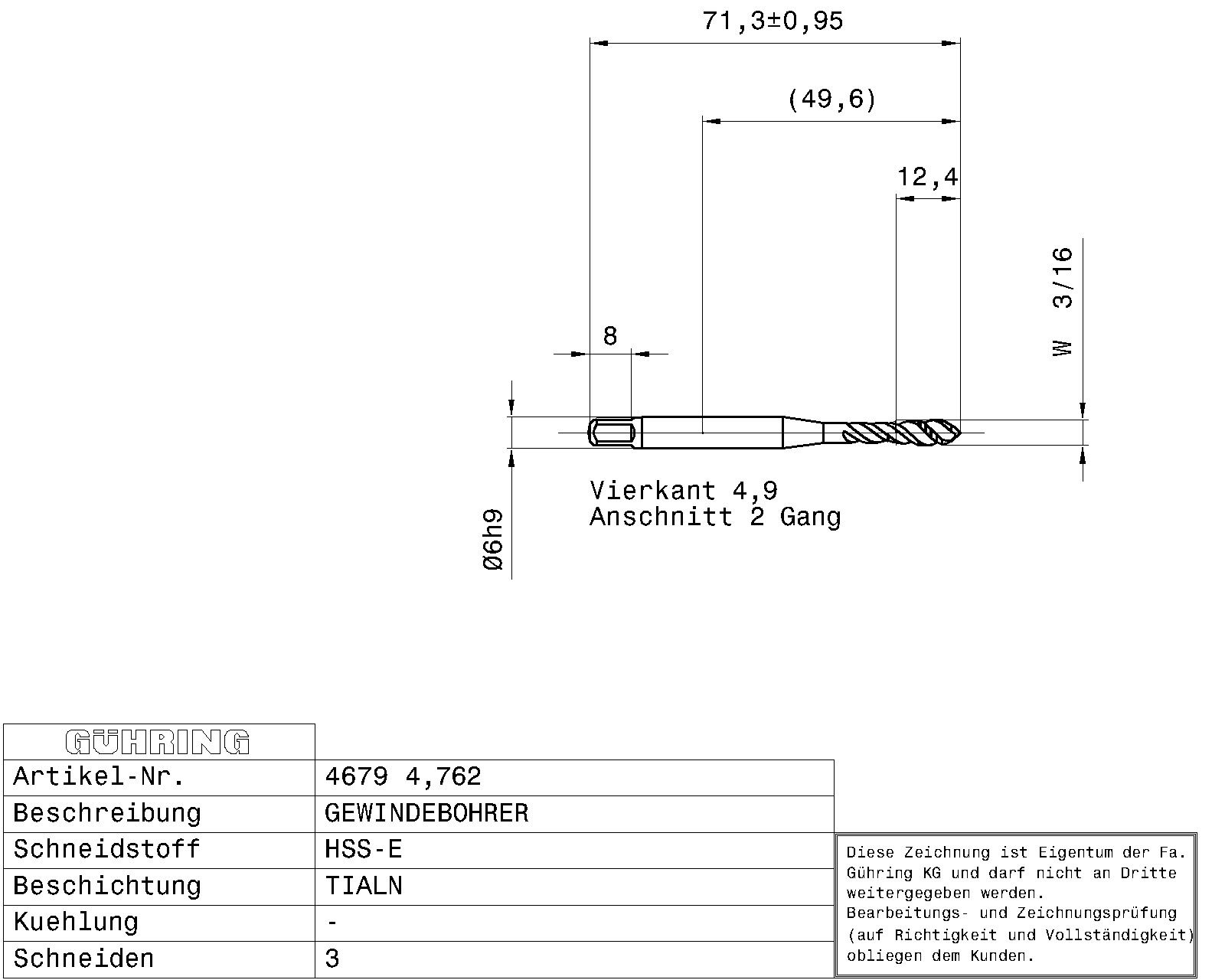

Guhring W 3/16 BSW Spiral Taps HSS-E Blue band TiALN coated - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Machine taps for BSW-threads W3/16 / 3xD / ~DIN 371 / DIN 2184-1 / HSS-E / TiAlN / Type: VA R45 / Form: C / blind hole / Cutting direction: right-hand

Additional information

Weight	0.0130 kg
Dimensions
barcode	9046790047620
Additional Information	Connection code machine side: straight shank Internal cooling: without Norm: DIN 371 Surface: TiAlN Discount group: 103 Type: 4679 Cutting direction: right-hand Type: VA R45 Material: HSS-E Additional information: Internal threading Form: C Coloured ring: blue ring Threads: BSW Hole type: blind hole Groove: 45° right hand helix Chamfer lead length: 2-3 Code no.: 4.762 Weight: 0.013 No of cutting edges: 3 Total length: 70.000 Thread length: 11.000 Groove length: 21.000 Usable length: 25.000 Norm 2: DIN 2184-1 Wrench opening 1: 4.900 Core hole Ø: 3.60 Shank Ø: 6.000 Nominal dimension thread: W3/16 External Ø: 4.810 Pitch thread/inch: 24.000 Reach length: 50.000 Statistical goods number: 82074010

Brand

Guhring
