ABN 37 114 870 012

Home » Shop » CUTTING TOOLS (HSS & Carbide) » Guhring W 3/16 BSW Spiral Taps HSS-E Yellow band

Guhring W 3/16 BSW Spiral Taps HSS-E Yellow band

Product Code: 2847 4,762

$142.84$129.85 Ex. GST

Product Code: 2847 4,762 SKU 2847 4,762 Category CUTTING TOOLS (HSS & Carbide)

Guhring W 3/16 BSW Spiral Taps HSS-E Yellow band

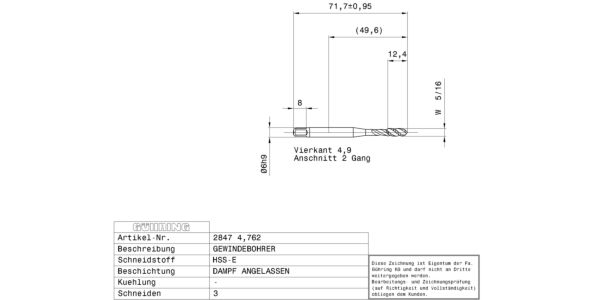

Guhring W 3/16 BSW Spiral Taps HSS-E Yellow band - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Machine taps for BSW-threads W3/16 / 3xD / ~DIN 371 / DIN 2184-1 / HSS-E / steam tempered / Type: N R40 / Form: C / blind hole / Cutting direction: right-hand

Additional information

Weight	0.0110 kg
Dimensions
barcode
Additional Information	Connection Code Machine Side: straight shank Internal Cooling: without Norm: ~DIN 371 Surface: steam tempered Discount Group: 103 Type: 2847 Cutting Direction: right-hand Type: N R40 Material: HSS-E Additional Information: Internal threading Form: C Coloured Ring: yellow ring Threads: BSW Hole Type: blind hole Groove: 40° right hand helix Chamfer Lead Length: 2-3 Code No.: 4.762 Weight: 0.011 No. of Cutting Edges: 3 Total Length: 70.000 Thread Length: 11.000 Groove Length: 21.000 Usable Length: 25.000 Norm 2: DIN 2184-1 Wrench Opening 1: 4.900 Neck Ø: 3.800 Core Hole Ø: 3.60 Shank Ø: 6.000 Nominal Dimension Thread: W3/16 Pitch: 1.058 External Ø: 4.810 Pitch Thread/Inch: 24.000 Reach Length: 50.000 Statistical Goods Number: 82074010

Brand

Guhring
