Guhring W 3/16 x 24 Bottoming Tap BSW Threads HSS

Product Code: 957 4,762

$55.33$50.30 Ex. GST

Product Code: 957 4,762 SKU 957 4,762 Category CUTTING TOOLS (HSS & Carbide)

Guhring W 3/16 x 24 Bottoming Tap BSW Threads HSS

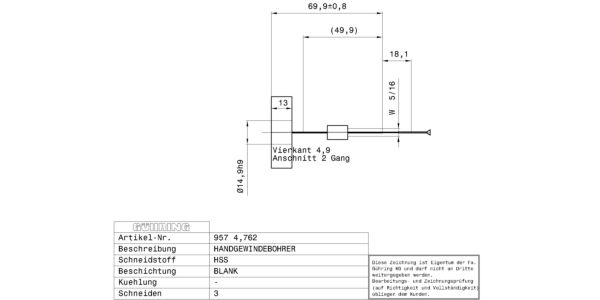

Guhring W 3/16 x 24 Bottoming Tap BSW Threads HSS - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Bottoming tap Hand taps for BSW-threads W3/16 / ~DIN 352 / DIN 2184-2 / HSS / bright / Type: N / Form: C / through-, blind hole / Cutting direction: right-hand

Additional information

Weight	0.0110 kg
Dimensions
barcode
Additional Information	Connection code machine side: straight shank Internal cooling: without Norm: ~DIN 352 Surface: bright Discount group: 118 Type: 957 Cutting direction: right-hand Type: N Material: HSS Additional information: Bottoming tap Form: C Coloured ring: yellow ring Threads: BSW Hole type: through-, blind hole Groove: straight-fluted cutting edges Chamfer lead length: 2-3 Code no.: 4.762 Weight: 0.011 No of cutting edges: 3 Total length: 50.000 Thread length: 14.000 Groove length: 20.000 Norm 2: DIN 2184-2 Wrench opening 1: 4.900 Neck Ø: 3.400 Core hole Ø: 3.60 Shank Ø: 6.000 Nominal dimension thread: W3/16 Pitch: 1.058 External Ø: 4.810 Pitch thread/inch: 24.000 Statistical goods number: 82074010

Brand

Guhring
