Guhring W 3/4 BSW Gun Nose Taps HSS-E Blue band Sirius Coated

Description

Machine taps for BSW-threads W3/4 / 3xD / ~DIN 376 / DIN 2184-1 / HSS-E / Sirius / Type: VA / Form: B / through hole / Cutting direction: right-hand

Weight	0.1560 kg
Dimensions
barcode	9046800190510

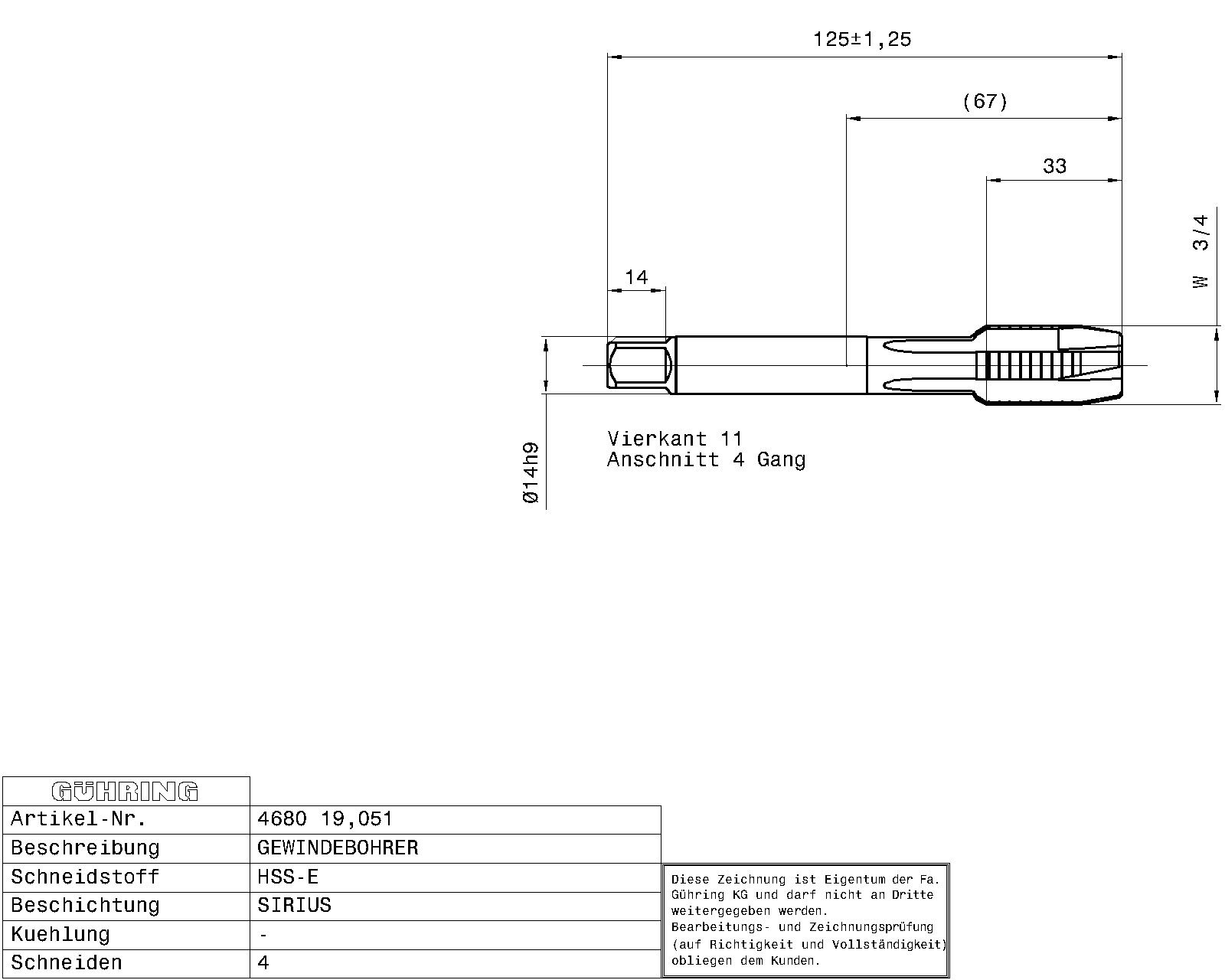

Additional Information	Connection code machine side: straight shank Internal cooling: without Norm: DIN 376 Surface: Sirius Discount group: 103 Type: 4680 Cutting direction: right-hand Type: VA Material: HSS-E Additional information: Internal threading Form: B Coloured ring: blue ring Threads: BSW Hole type: through hole Groove: straight-fluted cutting edges Chamfer lead length: 3.5-5.5 Code no.: 19.051 Weight: 0.156 No of cutting edges: 4 Total length: 125.000 Thread length: 33.000 Groove length: 58.000 Usable length: 62.000 Norm 2: DIN 2184-1 Wrench opening 1: 11.000 Core hole Ø: 16.25 Shank Ø: 14.000 Nominal dimension thread: W3/4 External Ø: 19.140 Pitch thread/inch: 10.000 Reach length: 67.000 Statistical goods number: 82074010
