Guhring W 3/8 BSW Spiral Taps HSS-E Blue band TiALN coated

Description

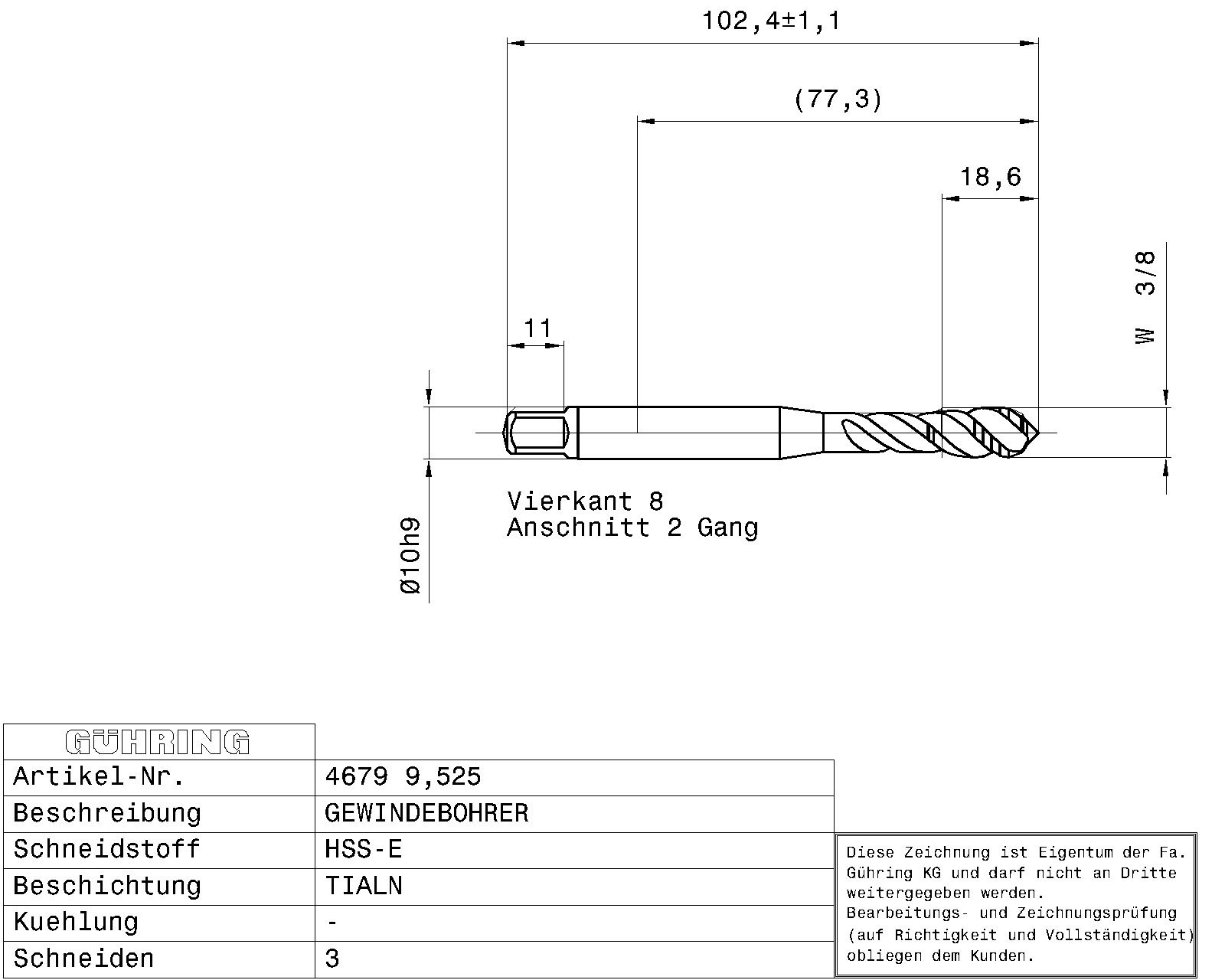

Machine taps for BSW-threads W3/8 / 3xD / ~DIN 371 / DIN 2184-1 / HSS-E / TiAlN / Type: VA R45 / Form: C / blind hole / Cutting direction: right-hand

Weight	0.0530 kg
Dimensions
barcode	9046790095250
Additional Information	Connection code machine side: straight shank Internal cooling: without Norm: DIN 371 Surface: TiAlN Discount group: 103 Type: 4679 Cutting direction: right-hand Type: VA R45 Material: HSS-E Additional information: Internal threading Form: C Coloured ring: blue ring Threads: BSW Hole type: blind hole Groove: 45° right hand helix Chamfer lead length: 2-3 Code no.: 9.525 Weight: 0.053 No of cutting edges: 3 Total length: 100.000 Thread length: 16.000 Groove length: 35.000 Usable length: 39.000 Norm 2: DIN 2184-1 Wrench opening 1: 8.000 Core hole Ø: 7.90 Shank Ø: 10.000 Nominal dimension thread: W3/8 External Ø: 9.600 Pitch thread/inch: 16.000 Reach length: 78.000 Statistical goods number: 82074010
