Home » Shop » CUTTING TOOLS (HSS & Carbide) » Guhring W 3/8 x 16 Bottoming Tap BSW Threads HSS

Guhring W 3/8 x 16 Bottoming Tap BSW Threads HSS

Product Code: 957 9,525

$79.06$71.87 Ex. GST

Product Code: 957 9,525 SKU 957 9,525 Category CUTTING TOOLS (HSS & Carbide)

Guhring W 3/8 x 16 Bottoming Tap BSW Threads HSS

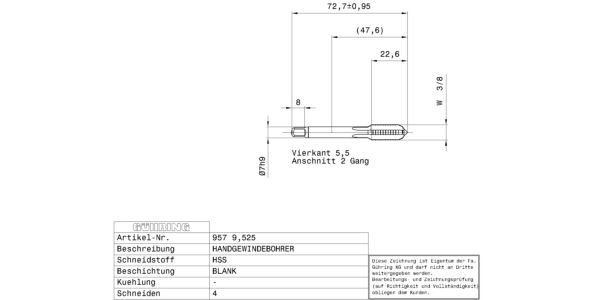

Guhring W 3/8 x 16 Bottoming Tap BSW Threads HSS - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Bottoming tap Hand taps for BSW-threads W3/8 / ~DIN 352 / DIN 2184-2 / HSS / bright / Type: N / Form: C / through-, blind hole / Cutting direction: right-hand

Additional information

Weight	0.1200 kg
Dimensions
barcode
Additional Information	Connection code machine side: straight shank Internal cooling: without Norm: ~DIN 352 Surface: bright Discount group: 118 Type: 957 Cutting direction: right-hand Type: N Material: HSS Additional information: Bottoming tap Form: C Coloured ring: yellow ring Threads: BSW Hole type: through-, blind hole Groove: straight-fluted cutting edges Chamfer lead length: 2-3 Code no.: 9.525 Weight: 0.120 No of cutting edges: 4 Total length: 70.000 Thread length: 20.000 Groove length: 32.000 Norm 2: DIN 2184-2 Wrench opening 1: 5.500 Core hole Ø: 7.90 Shank Ø: 7.000 Nominal dimension thread: W3/8 Pitch: 1.587 External Ø: 9.600 Pitch thread/inch: 16.000 Statistical goods number: 82074010

Brand

Guhring
