Guhring W 5/16 BSW Spiral Taps HSS-E Blue band TiALN coated

Product Code: 4679 7,938

$150.50$136.82 Ex. GST

Product Code: 4679 7,938 SKU 4679 7,938 Category CUTTING TOOLS (HSS & Carbide)

Guhring W 5/16 BSW Spiral Taps HSS-E Blue band TiALN coated

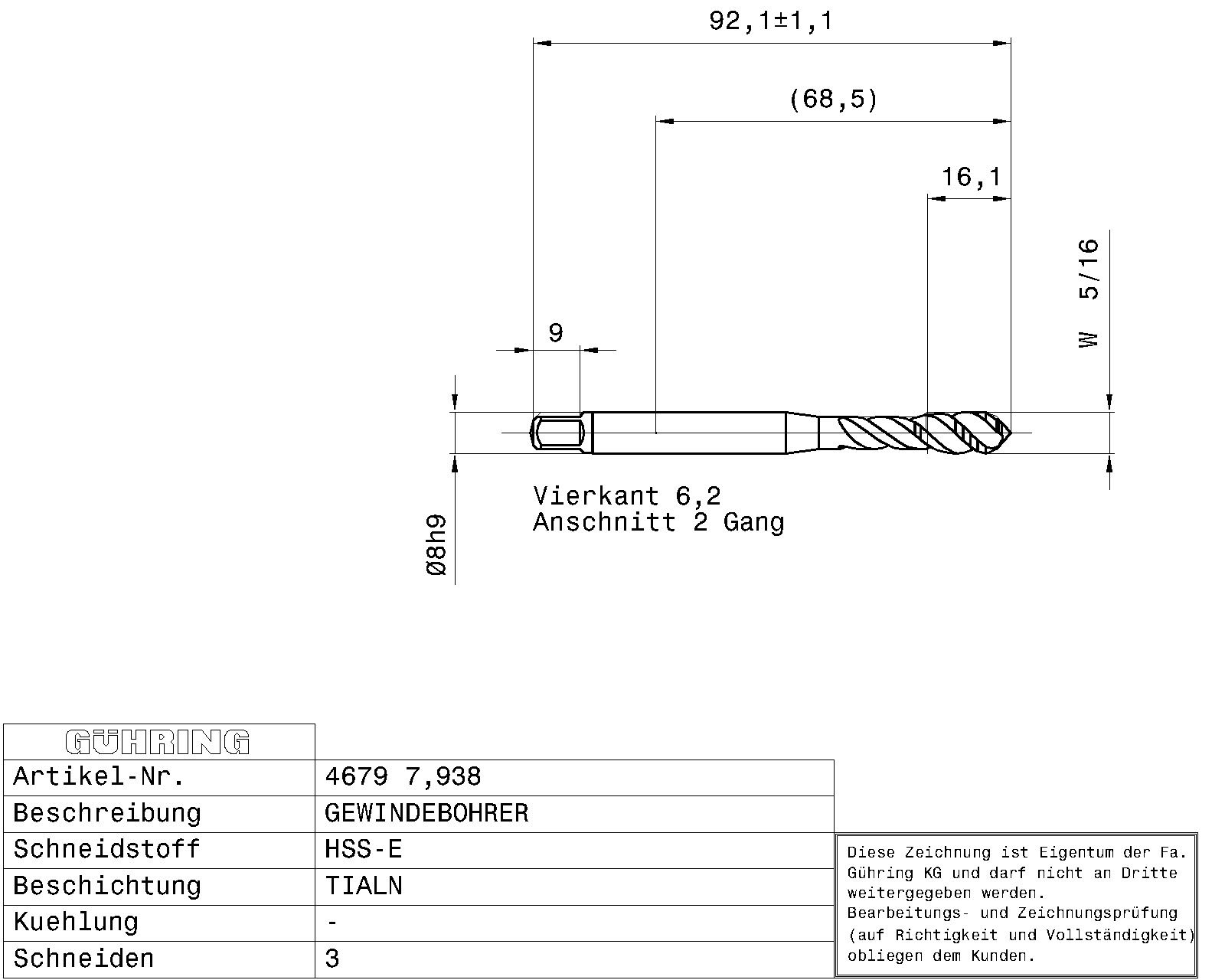

Guhring W 5/16 BSW Spiral Taps HSS-E Blue band TiALN coated - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Machine taps for BSW-threads W5/16 / 3xD / ~DIN 371 / DIN 2184-1 / HSS-E / TiAlN / Type: VA R45 / Form: C / blind hole / Cutting direction: right-hand

Additional information

Weight	0.0330 kg
Dimensions
barcode	9046790079380
Additional Information	Connection code machine side: straight shank Internal cooling: without Norm: DIN 371 Surface: TiAlN Discount group: 103 Type: 4679 Cutting direction: right-hand Type: VA R45 Material: HSS-E Additional information: Internal threading Form: C Coloured ring: blue ring Threads: BSW Hole type: blind hole Groove: 45° right hand helix Chamfer lead length: 2-3 Code no.: 7.938 Weight: 0.033 No of cutting edges: 3 Total length: 90.000 Thread length: 14.000 Groove length: 31.000 Usable length: 35.000 Norm 2: DIN 2184-1 Wrench opening 1: 6.200 Core hole Ø: 6.50 Shank Ø: 8.000 Nominal dimension thread: W5/16 External Ø: 7.990 Pitch thread/inch: 18.000 Reach length: 69.000 Statistical goods number: 82074010

Brand

Guhring
