Guhring W 5/8 BSW Spiral Taps HSS-E Yellow band

Product Code: 2848 15,876

$245.15$222.86 Ex. GST

Product Code: 2848 15,876 SKU 2848 15,876 Category CUTTING TOOLS (HSS & Carbide)

Guhring W 5/8 BSW Spiral Taps HSS-E Yellow band

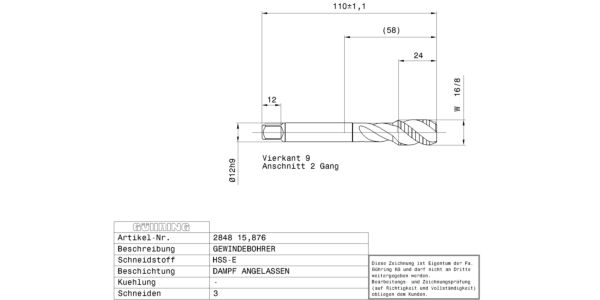

Guhring W 5/8 BSW Spiral Taps HSS-E Yellow band - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Machine taps for BSW-threads W5/8 / 3xD / ~DIN 376 / DIN 2184-1 / HSS-E / steam tempered / Type: N R40 / Form: C / blind hole / Cutting direction: right-hand

Additional information

Weight	0.0870 kg
Dimensions
barcode
Additional Information	Connection Code Machine Side: straight shank Internal Cooling: without Norm: ~DIN 376 Surface: steam tempered Discount Group: 103 Type: 2848 Cutting Direction: right-hand Type: N R40 Material: HSS-E Additional Information: Internal threading Form: C Coloured Ring: yellow ring Threads: BSW Hole Type: blind hole Groove: 40° right hand helix Chamfer Lead Length: 2-3 Code No.: 15.876 Weight: 0.087 No. of Cutting Edges: 3 Total Length: 110.000 Thread Length: 24.000 Groove Length: 49.000 Usable Length: 53.000 Norm 2: DIN 2184-1 Wrench Opening 1: 9.000 Neck Ø: 11.800 Core Hole Ø: 13.50 Shank Ø: 12.000 Nominal Dimension Thread: W5/8 Pitch: 2.309 External Ø: 15.960 Pitch Thread/Inch: 11.000 Reach Length: 58.000 Statistical Goods Number: 82074010

Brand

Guhring
