Guhring W 7/8 BSW Spiral Taps HSS-E Blue band TiALN coated

Description

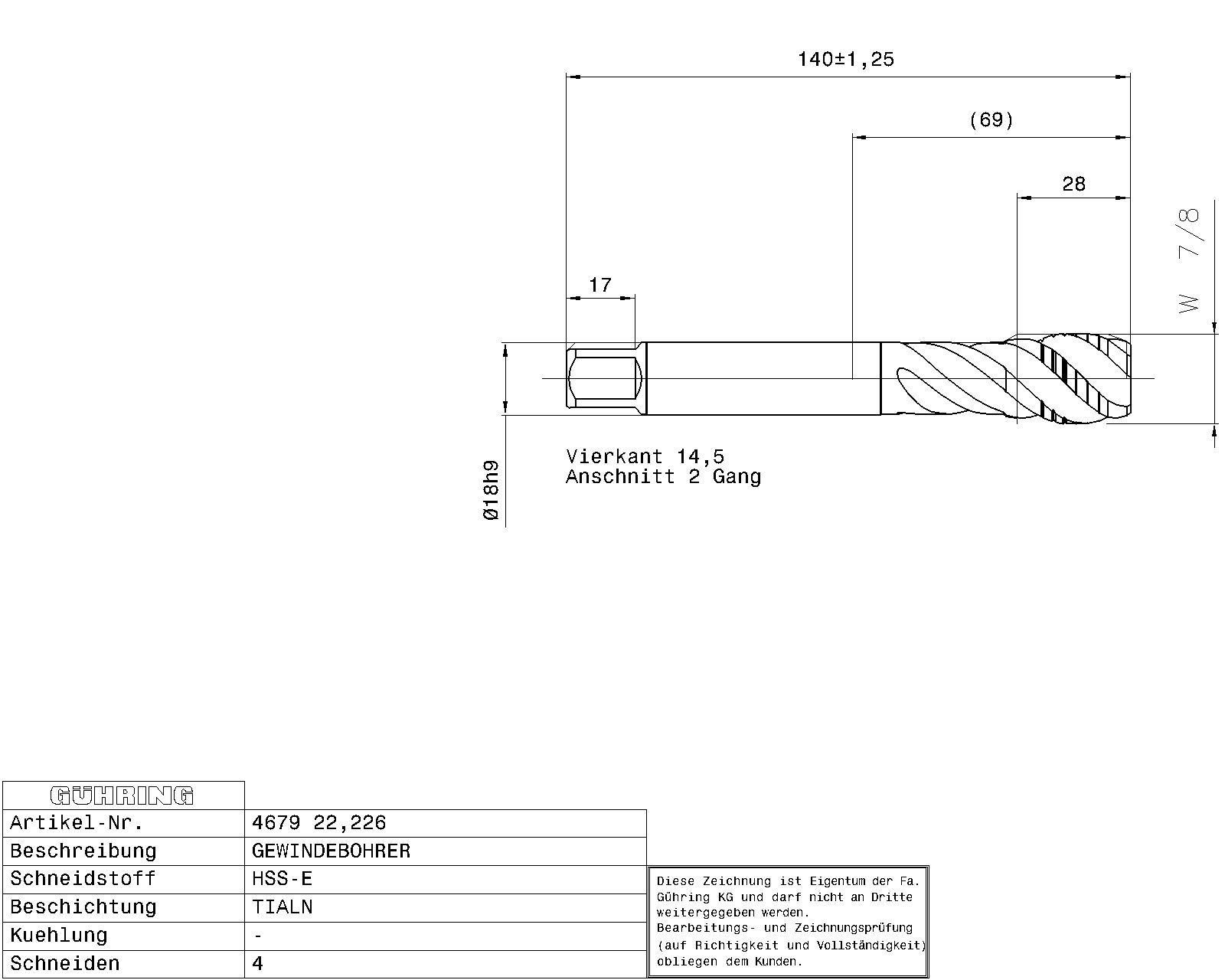

Machine taps for BSW-threads W7/8 / 3xD / ~DIN 376 / DIN 2184-1 / HSS-E / TiAlN / Type: VA R45 / Form: C / blind hole / Cutting direction: right-hand

Weight	0.1680 kg
Dimensions
barcode	9046790222260
Additional Information	Connection code machine side: straight shank Internal cooling: without Norm: DIN 376 Surface: TiAlN Discount group: 103 Type: 4679 Cutting direction: right-hand Type: VA R45 Material: HSS-E Additional information: Internal threading Form: C Coloured ring: blue ring Threads: BSW Hole type: blind hole Groove: 45° right hand helix Chamfer lead length: 2-3 Code no.: 22.226 Weight: 0.168 No of cutting edges: 4 Total length: 140.000 Thread length: 28.000 Groove length: 58.000 Usable length: 62.000 Norm 2: DIN 2184-1 Wrench opening 1: 14.500 Core hole Ø: 19.25 Shank Ø: 18.000 Nominal dimension thread: W7/8 External Ø: 22.310 Pitch thread/inch: 9.000 Reach length: 69.000 Statistical goods number: 82074010
