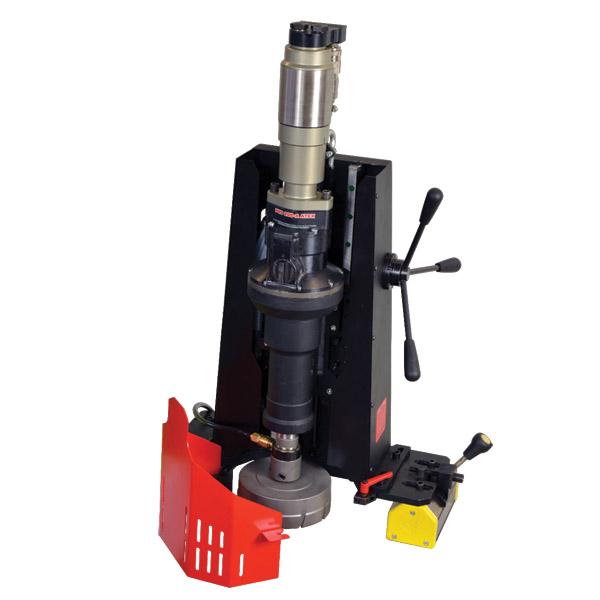

The PRO200A is a new pneumatic portable magnetic drilling machine with 200mm diameter drilling and M52 tapping capacity. The spindle bore is No.5 Morse Taper and the drill chuck is 1-1/4″ Weldon. The PRO200A is a robust design built with modular construction and can be handled by a single operator. Features:. 2 speeds – ideal for drilling and tapping. Integrated air processing module. 2 x 14700Nm magnetic adhesion force. Adaptive magnets, can work on curved or flat surfaces. Integrated swarf guard. Reverse. Both the machine and the body of the PRO200A drill is certified ATEX II2G/D C IIC T6;T4 and meets the requirements for use in areas with a risk of explosion.
Motor Speeds (under load):
– 20 rpm (gear I)
– 80 rpm (gear II)
Motor Power: 3650 W
Air consumption: 3500 l/min (125 CFM)
Pressure: 6.5 bar
Air connection: G1/2″ external thread
Spindle: MT5
Tool holder: 31.75 mm Weldon (1-1/4″)
Max milling capacity: 200 mm (7-7/8″)
Max drilling capacity: 45 mm (1-3/4″)
Max Tap size: M48
Stroke: 400 mm (15-3/4″)
Max depth of cut: 100 mm (4″)
Magnetic clamping force: 2 × 15.000 N
Min. workpiece thickness: 13 mm (1/2″)
Required ambient temperature: 0–40°C (32–104°F)
Max Working Height: 991mm
Max Working Width: 900mm
Max Working Length: 528mm
Weight: 130 kg (290 lbs.)
