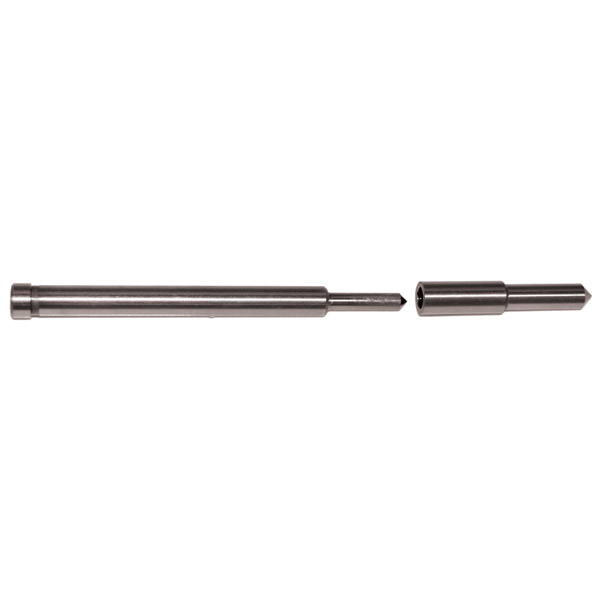

The depth of cut restrictions for a magnetic base drilling machine using annular cutters is limited by the ability of the machine’s arbor to retract the pilot pin within itself. These two part pilot pins allow the depth of cut capacity to be increased. ie. a machine that is limited to 52mm depth of cut as standard can be increased to 75, 100, 125mm, 150mm or 200mm depth of cut. A depth of cut capacity will still be limited by stroke.
Diameter: 8mm
Annular Cutter Depth of Cut: 125mm
Overall Length: 184mm
| Weight | 0.0600 kg |
|---|---|
| barcode | 9328042010056 |
