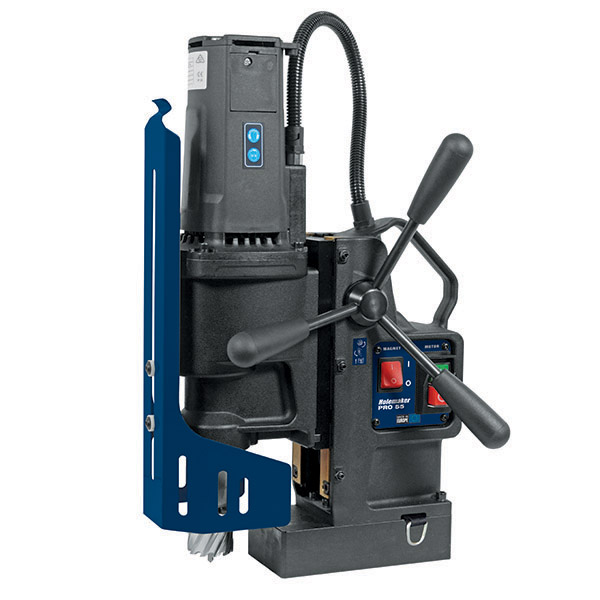

HOLEMAKER PRO55 MAGNETIC BASE DRILL, CAP: 55MM DIA X 75MM

Description

New generation machines with the latest technology and design.
New Rigid Frame Design
Provides increased life of cutting tools.
New Extra Large 165mm Stroke
Enables the use of long tooling such as extension arbors and large depth cutters for drilling box section steel in one pass, twist drills, reamers, taps etc.
Magnetic Field Shape Control (MFSC)
Provides maximum holding power on thin materials.
Lightweight & Powerful
The new generation Holemaker machines are lighter and more powerful than other brands on the market.
Features:
European made machine
Extra large 165mm stroke allowing the use of an optional 13mm twist drill chuck
Industrial 2-speed gearbox Through spindle coolant system, with an external side mounted gravity feed coolant tank
The feed handles can be placed on either the left or right hand side, for increased versatility
Smart magnet technology to ensure sufficient magnetic adhesion
Integrated cutter guard for increased user safety
Supplied in a blow mould plastic carry case
Grub screw arbor system, which fastens positively onto Holemaker cutters
13mm drill chuck SADCA-13 available separately
Capacity (Diameter): 55mm
Capacity (Depth): 75mm
Capacity (Twist Drills): 18mm Motor Power: 1100 Watt
Input Power: 1200 Watt Single Phase 240V
Speed: 2 Speed 200 / 400rpm
Weight: 15.5kg
Magnetic Dead Lift: 9,900Nm On 25mm Steel Plate
Stroke: 165mm
Height (Min. / Max.): 409 / 574mm
