$18,475.60$16,796.00 Ex. GST

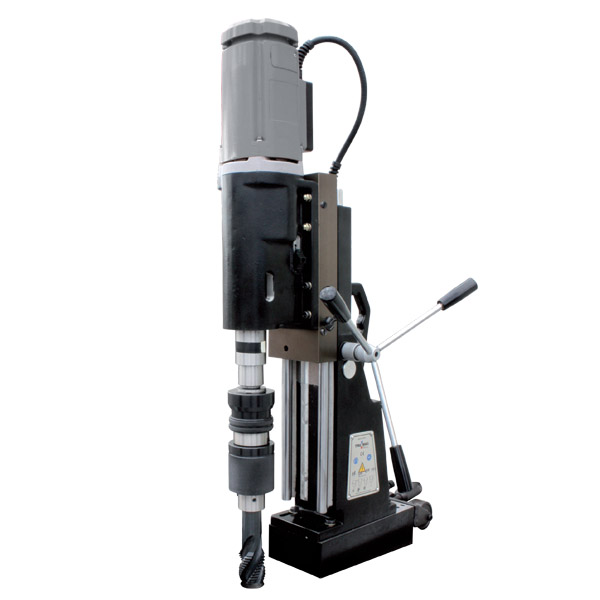

The TAP 50 is a portable magnetic drilling machine with 200mm diameter drilling and M52 tapping capacity (with optional tapping head) TAP 50 has a 3.0kW single phase 240V motor. The spindle bore is No.5 Morse Taper. The TAP 50 is designed for special and challenging applications that no other portable magnetic drill has been able to solve before. Feed handles can be placed on the left or right sides of the machine. Reversible. Heavy duty dual rail slides provide rigidity and quick movement
Capacity (Diameter): 200mm
Capacity (Depth): 250mm
Capacity (Tapping): 52mm
Capacity (Twist Drill): 52mm
Motor Power: 2850 watt
Input Power: Single Phase 240V
Gearbox: 4 Speed Gearbox with electronic Hi/Low – 40/60. 90/130, 170/240, 380/545RPM
Weight: 52.0kg
Stroke: 330mm
Height (min/max): 730mm / 955mm
Video below shows machine with OPTIONAL large pressure feed coolant bottle
| Weight | 75.0000 kg |
|---|---|
| barcode | |
| Additional Information |
