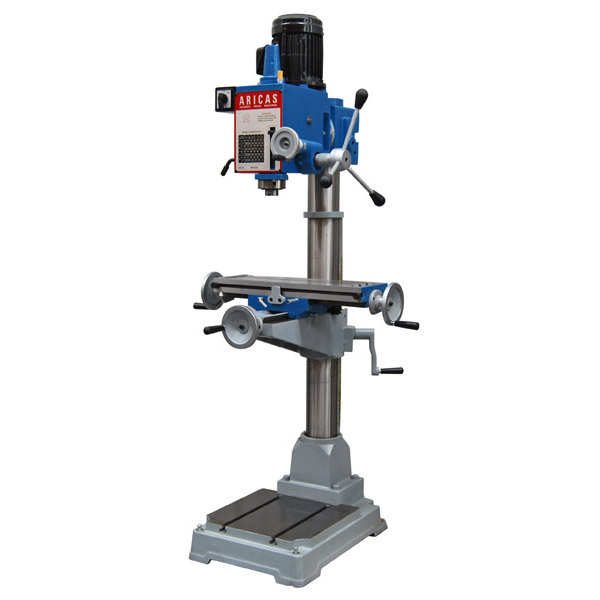

Quality Taiwanese Precision Machine for drilling & tapping. # 3 Morse Taper Spindle. 1120W Single Phase Motor. Geared Head Tilts 90° right & left. Forward and Reverse Operation. Includes 3MT – J6 arbor with drawbar thread M12 x 1.75
No chuck supplied
Drilling Capacity Cast Iron: 40mm
Drilling Capacity Steel: 32mm
Spindle Taper: #3MT
Spindle Nose to Base: 1100mm
Spindle Nose to Table: 580mm
Spindle to Column: 275mm
Diameter of Column: 115mm
Quill Diameter: 75mm
Quill Travel: 120mm
Swing: 550mm
Head Tilting: 90° Right & Left
Head Swivel: 360°
Spindle Speeds (240v) : 100, 220, 380, 760, 1240, 2500rpm
Spindle Speeds (415v) : 50, 100, 190, 380, 670, 1250rpm
Table Surface: 585 x 190mm
Cross Travel: 210mm
Longitude Travel: 340mm
Overall Height: 1880mm
Base Dimensions: 450 x 650mm
N.W. / G.W. : 325 / 360kg
Shipping Dimensions : 730 x 550 x 1950mm
| Weight | 360.0000 kg |
|---|---|
