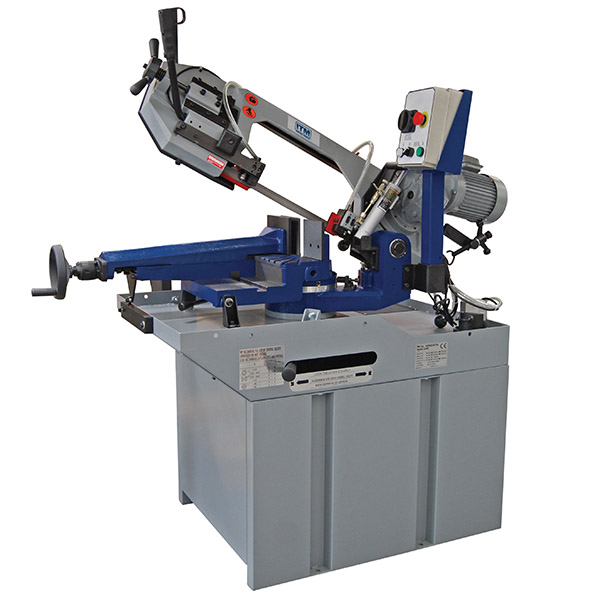

ITM BANDSAW, 227MM CAP, SWIVEL HEAD, DUAL MITRE, 1 SPEED 240V 1PH, HYD DOWN FEED

Description

2-way swivel head enables from 0° to 60° mitre cuts.
Dual mode operation. – Trigger switch with manual down feed for small quick cuts. – Control panel with fully adjustable hydraulic down feed & automatic shut-off at end of cut, for cutting larger material.
Dual direction heavy-duty vice.
Incorporated recirculating coolant system.
Brass chip brush to help prevent blade breakage.
Adjustable material stop for repetitive production.
Safety emergency stop switch.
12 months warranty.
Comes complete with stand & blade.
Optional blade tension gauge.
Made in Taiwan.
Motor: 1.5hp Single Phase (240V)
Blade Speed: Single Speed 72mpm
Blade Size: 27mm x 0.9mm x 2460mm
Bed Height: 900mm
Weight: 285kg
90° Cutting Capacity:
Round: 220mm
Square: 215mm
Rectangle: 260 x 105mm
45° Right Cutting Capacity:
Round: 150mm
Square: 145mm
Rectangle: 155 x 70mm
60° Right Cutting Capacity:
Round: 90mm
Square: 85mm
Rectangle: 90 x 85mm
45° Left Cutting Capacity:
Round: 110mm
Box: 110mm
Rectangle: 160 x 45mm
