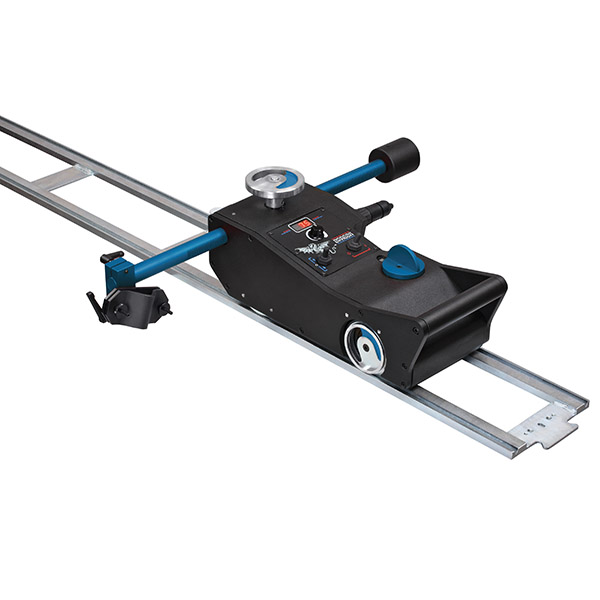

The Dragon is designed to carry a range of oxy-fuel cutting torches with a grip diameter 28 – 35mm, to perform machine quality cutting and bevelling processes in a variety of applications.
Cutting and bevelling 0° to 45° (also parallel with 2 torches)
Quick clamping torch holder for torch diameter 28mm to 35mm
Advanced speed control system with implemented digital control loop feedback PID regulator
LED display with readout of actual and set speed, and report messages
Travel on a rail or directly on a workpiece
2-wheel drive with automatic braking drive unit
Quick drive release switch for easy re-positioning
Connectable rails to form various lengths
Rigid and heat-proof design
Package Includes
Dragon carriage
Torch rack 580mm
Counterweight 1.3kg
Torch holder with angle & height adjustment (WAP-D6030)
Power cord
Operator’s manual
Power supply: 115-230VAC / 50-60Hz
Power: 13W
Torch grip diameter: 28-35mm
Chassis to material clearance: 7.5mm
Travel mechanism: 4 Knurled Wheels, 2 Wheel Drive
Guiding equipment: Optional “V” Type Rail With Grooves At 152mm Centres, 1800mm Length (Part# WAP-D6010)
Cutting speed: 0-1500mm/min
Chassis dimensions: 427mm(L) x 189mm(W) x 180mm(H)
Weight: 16.8kg
| Weight | 20.8350 kg |
|---|---|
| barcode | 9328042020604 |
