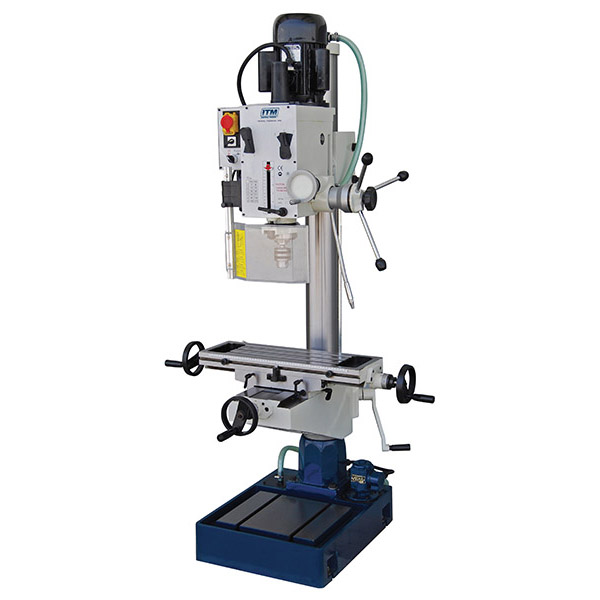

Quality precision machine for drilling, milling & tapping. No. 4 Morse taper spindle. 1120W motor, three phase. Micro feed precision. Geared head tilts 90° right & left. Forward and reverse operation. Recirculating coolant system. Accessories include arbor, with drawbar thread M16 x 2.0, milling chuck, 16mm drill chuck, drill sleeves
Max Drilling Capacity: 40mm
Spindle Taper: MT4
Spindle Nose To Base: 1180mm
Spindle Nose To Table: 610mm
Spindle To Column: 272.5mm
Diameter Of Column: 115mm
Quill Travel: 120mm
Swing: 660mm
Spindle Speeds (rpm): 75, 170, 280, 540, 960, 1600
Table Surface: 600 x 190mm
Cross Travel: 190mm
Longitude Travel: 370mm
Overall Height: 1770mm
Base Dimensions: 650 x 450mm
T -Slot Size: 12mm
N.W. / G.W.: 340 / 390kg
Shipping Dimensions: 820 x 720 x 1830mm
| Weight | 370.0000 kg |
|---|---|
