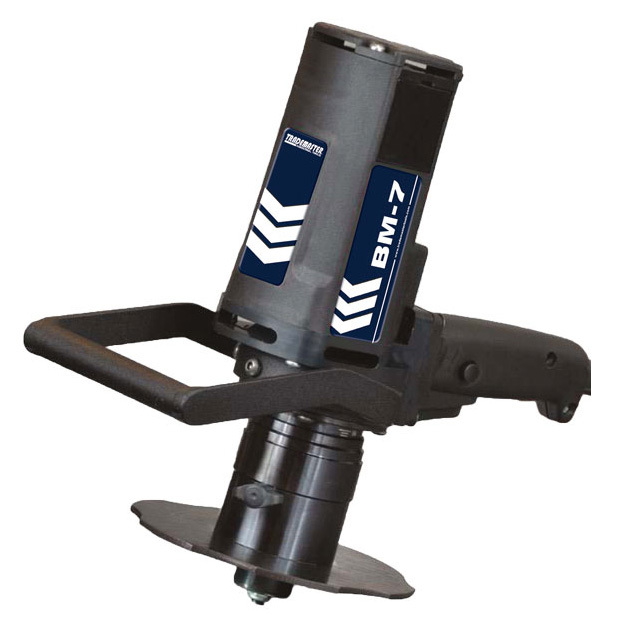

Small, lightweight, quick, and simple to use beveller that creates a perfect radius (R2, R3, R4 or R5) in just one pass, saving time and money over conventional grinding methods. Ideal for milling plates, pipes and contour profiles. Perfect solution for radius edge applying to steel sections before painting which has crucial implications on lifetime of material cover to prevent rust build up on sharp edges.
Features:
Top bevelling
Arched edge bevelling
Pipe OD bevelling
Lightweight and compact design
Ideal for radius edge bevelling
Small overall dimensions
Excellent for limited access
Continuous bevel width adjustments
One single 45° milling head for both radius and V bevels
Specifications:
Power supply: 1~220-240 V
Motor: 1100 W
Spindle speed (without load): 6500 rpm
Maximum bevel width: 7 mm
Bevel angle (ß, depending on milling head): 45deg; ; 30° (option)
Minimal diameter of countersinking: ca 35 mm
Rounding edges: R2, R3, R4, R5
Min plate thickness: 1.5 mm
Pipe ID bevelling: Min. ID 40 mm
Dimensions: 327 L x 142 W x 319 H mm
Weight (without milling head): 5.8 kg
| Weight | 5.8000 kg |
|---|---|
| barcode | 9328042029980 |
