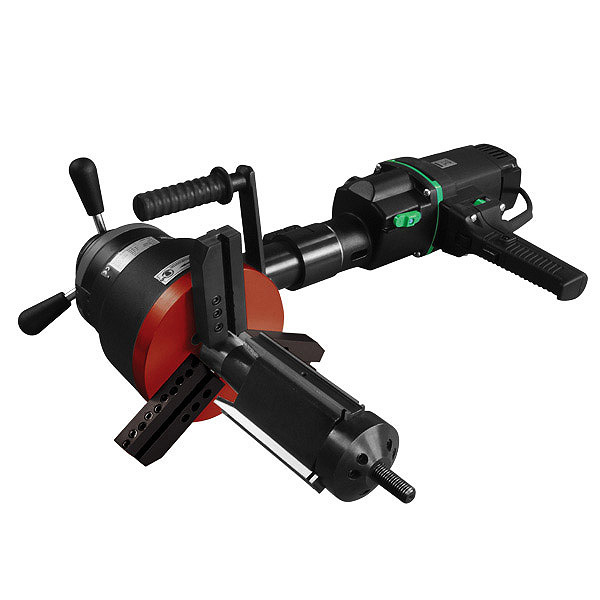

The ITM PRO 10 PB is a European made I.D. mounted portable pipe bevelling machine. Although it is a large capacity heavy duty machine, it can be used efficiently by a single operator, weighing in at a total of just 31.5kg. The self-centring expandable mandrels provide quick and correct alignment to pipe. The PRO 10 PB can simultaneously perform 3 of the following operations – internal bevel, external bevel, J-groove bevel, face off, I.D. chamfer and counterbore. Whilst the machine can be operated with just 1 cutting insert, optimal results are achieved by using 3 cutting inserts at once. The PRO10PBE is powered by a high torque electric motor while the PRO10PBA is powered by a pneumatic motor.. Package Includes:
PRO 10 PB Bevelling Machine
Electric or Pneumatic motor
Mandrel for pipe 84mm I.D. to 269mm I.D.
Jaw block set no. 1 to 6
Toolbox & tools
Coolant bottle
Motor: Pneumatic Motor 1.5kw
Power Requirements: 1750 l/min at 630 kPa
Spindle Speed: 20rpm
Weight: (with standard mandrel) 32.0kg
| Weight | 61.0000 kg |
|---|---|
| barcode | 9328042030023 |
