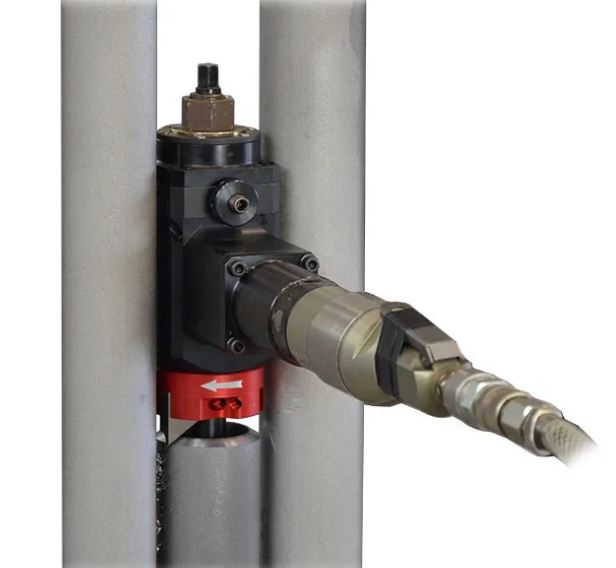

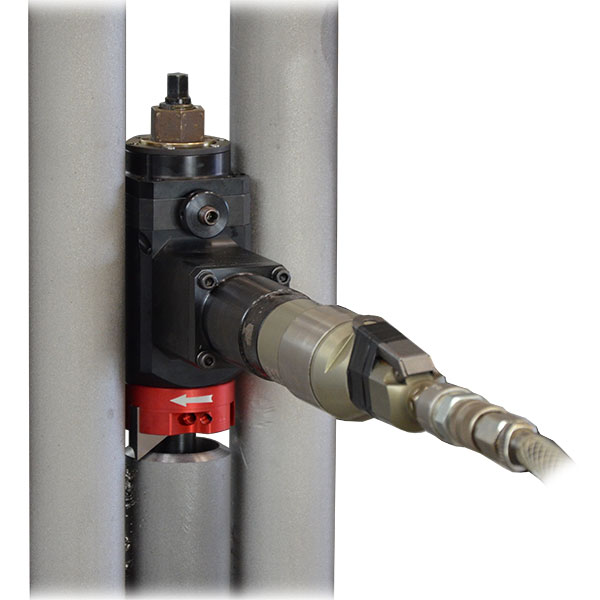

The ITM PRO 5 PB is a European made I.D. mounted pipe bevelling machine, designed for portable use by a single operator. The self-centring expandable mandrel provides quick and correct alignment to pipe or tube prior to machining operations. The Pro 5 PB is able to simultaneously perform 3 of the following operations:
External bevel, internal bevel, face off, I.D. chamfer, J-groove bevel, and counterbore. Use any tool bit from ID 25 mm up to OD 140 mm, provided that PRO5PB is equipped with just 1 tool bit either for facing-off or for beveling – no mater short or long.
Pipe machining range:
32mm I.D. minimum pipe capacity
114mm O.D. maximum pipe capacity
25mm I.D. minimum pipe capacity with optional small mandrel
140mm O.D. maximum pipe capacity with optional 140mm spindle disk set
12mm maximum wall thickness
Package Includes:
PRO 5 PB Bevelling Machine with Electric or Pneumatic Motor
Mandrel 32mm I.D. to 107mm I.D
118mm spindle disc
3 x set of jaw blocks (1,2,3,4,5,6)
Set of tools
Coolant container
Operator’s manual
Motor: Pneumatic Motor 800W
Rotational Speed: 90rpm
Air Consumption: 1600 l/min (49.4CFM)
Weight: (incl. PRO5PB) 10kg
| Weight | 22.0000 kg |
|---|---|
