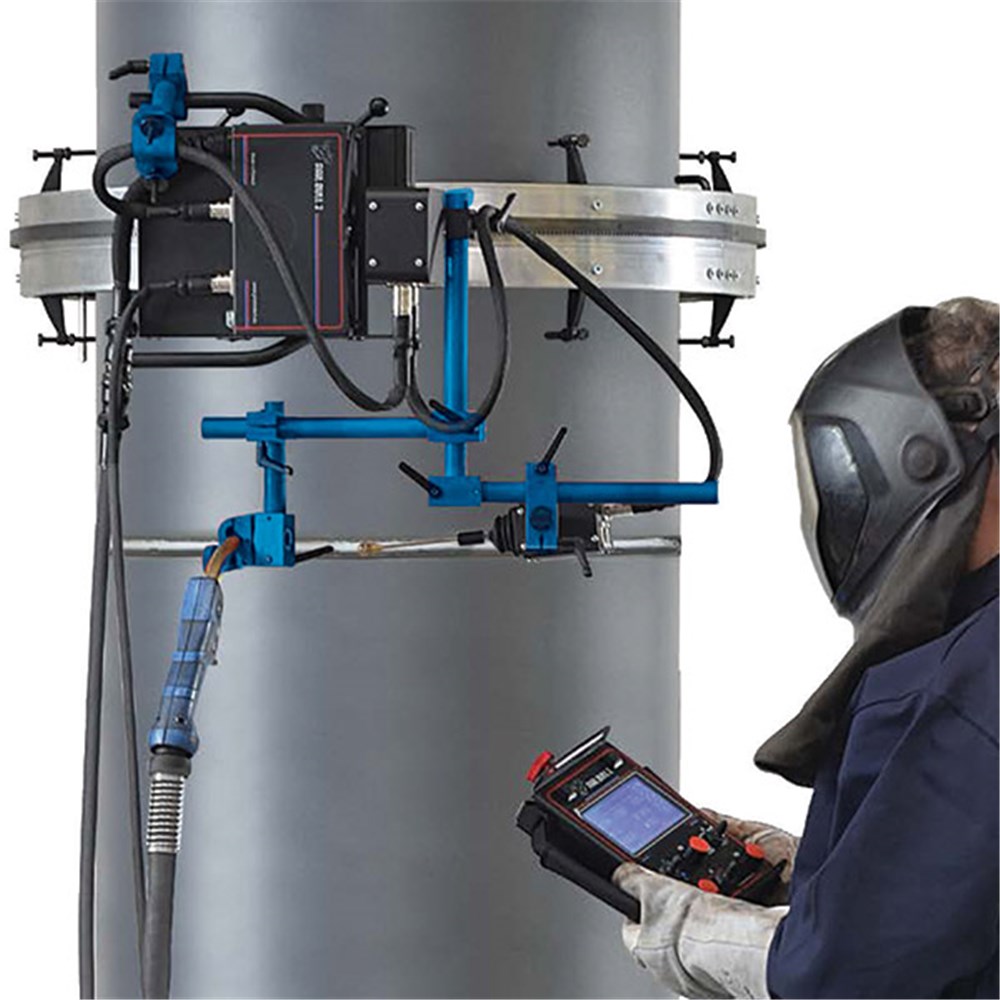

The Rail Bull 2 is a track welding carriage designed to produce butt and fillet welds with or without oscillation.
The carriage can work in PA (flat), PB (horizontal vertical), PC (horizontal), PF (vertical up), and PG (vertical down) welding positions.
Rail Bull 2 moves along either rigid or semi-flexible track. Both types of tracks are fixed to flat or curved ferromagnetic surfaces by means of dual magnetic units. The minimum curvature radius required is 5 m.
Rail Bull 2 can work in all welding positions on both ferromagnetic and non-ferromagnetic materials by using rack and pinion drive and various tracks equipped with magnetic or vacuum units.
Features:
Fully modular mechanized travel carriage can be custom configured for a variety of welding, thermal cutting and gouging applications on flat or curved plate, tube and pipe
Linear torch oscillator to produce weave welds
Active compensation of torch position vertically and horizontally by means of modular automatic seam tracking system
Programmable path of stitch welds
Possibility to select one limit switch pre-set out of three pre-sets available.
Suitable for variety of circumferential and irregular surface applications down to minimum radius of 100 mm (4″)
Ring tracks on diameters from 200 mm OD up to 3 m OD
Custom rolled tracks on diameters from 3 m OD up to 10 m OD
Semi-flexible tracks can be flexed to minimum radius of 5 m without permanent deformation
Ergonomic remote control pendant with simple and easy to find control knobs makes adjustments possible without lifting of the operators welding hood
Magnetic adhesion of the pendant provides firm grip on ferromagnetic materials
Suitable for all welding positions on both ferromagnetic and non-ferromagnetic materials thanks to rack and pinion drive and various tracks equipped with magnetic or vacuum units
Rail Bull 2 produces consistent high quality welds and cuts in a fraction of the time required by manual operations
High speed up to 3 m/min ma
| Weight | 20.0000 kg |
|---|---|
| barcode | 9328042030078 |
