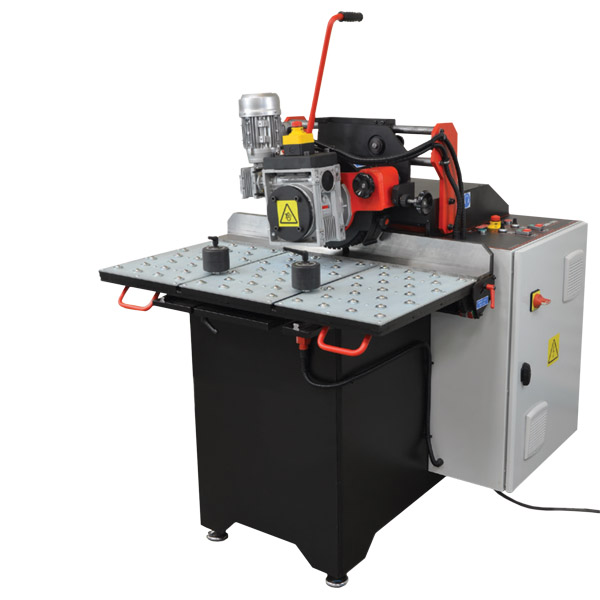

Stationary beveller for machining straight edges of different size workpieces. Modern design, numbers of advanced control systems and innovative solutions streamlines workflow to maximize your production efficiency.
Edge bevelling
Ergonomic ball roller bench
Swarf drawer
Supplementary tables to accommodate long workpieces
Pipe beveling attachment for pipes 50-150 mm (2-6”) OD
3D contact wheel control ensures proper workpiece alignment in relation to milling head
Very high surface quality
High speed rotary milling head equipped with 10 inserts
Cutting inserts dedicated to various materials
No heat affected zones or distortion of the workpiece
Easy access to milling head and cutting inserts
Precise setting of bevel angle from 15 up to 60 degrees and bevel width up to 30 mm
Continuous adjustment of spindle speed and feed rate make it suitable for different types of steel and aluminum
Voltage: 3~ 400 VAC + N+PE, 50/60 Hz
Power: 7500 W
Spindle speed (no load): 500 – 2920 rpm
Feed rate: up to 3.3 m/min
Bevel angle range: 15 – 60° with continuous angle adjustment
Bevel width: up to 30 mm
Workpiece height: from 3 mm up to 100 mm Edge Beveling
Min. workpiece width: 50 mm
Min. workpiece length: 150 mm
Pipe OD beveling: from 50 mm up to 150 mm (option)
Weight: 850 kg
| Weight | 850.0000 kg |
|---|---|
| barcode | 9328042030085 |
