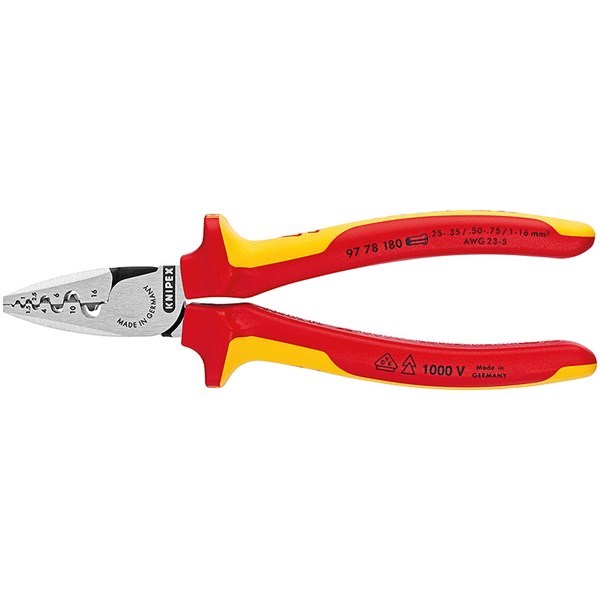

KNIPEX 1000V CRIMPING PLIER FOR END SLEE

Product Code: 9778180

$137.62$125.11 Ex. GST

Product Code: 9778180 SKU 9778180 Category

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

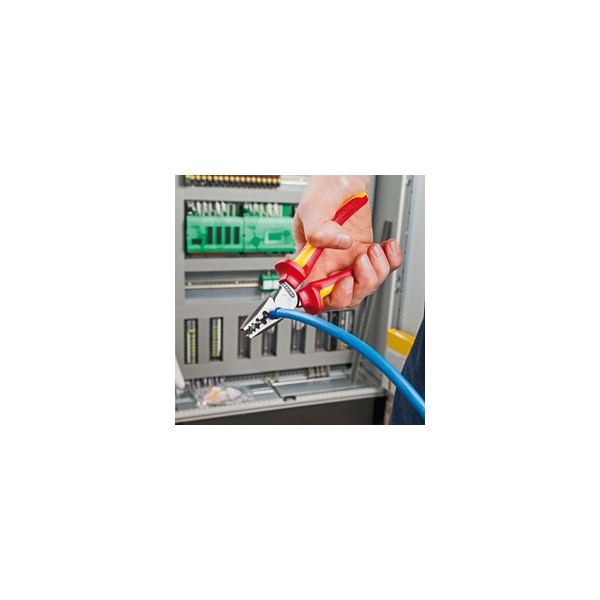

For crimping end sleeves (ferrules) according DIN 46228 parts 1 + 4 from 0.25 to 16 mm²
Improved leverage for 30% easier crimping
More light and slim design
Crimping in marked half-round dies for reliable connections between the sleeve and the conductor.9 particularly deep dies with conical side faces
Special tool steel, forged, oil-hardened

Additional information

Weight 0.2540 kg
Dimensions
barcode

4003773072003

Additional Information

AWG: 23 – 5
Crimping Positions: 9
Head: polished
Length: 180mm
Net weight: 254g
Style: Crimping Pliers – Slim Design
Mandrel crimp narrowVDE tested, also in compliance with GPSG (Equipment and Product Safety Act)Insulated according to IEC 60900, usable up to 1000 V AC/1500 V DC

Brand

KNIPEX
