$404.51$367.74 Ex. GST

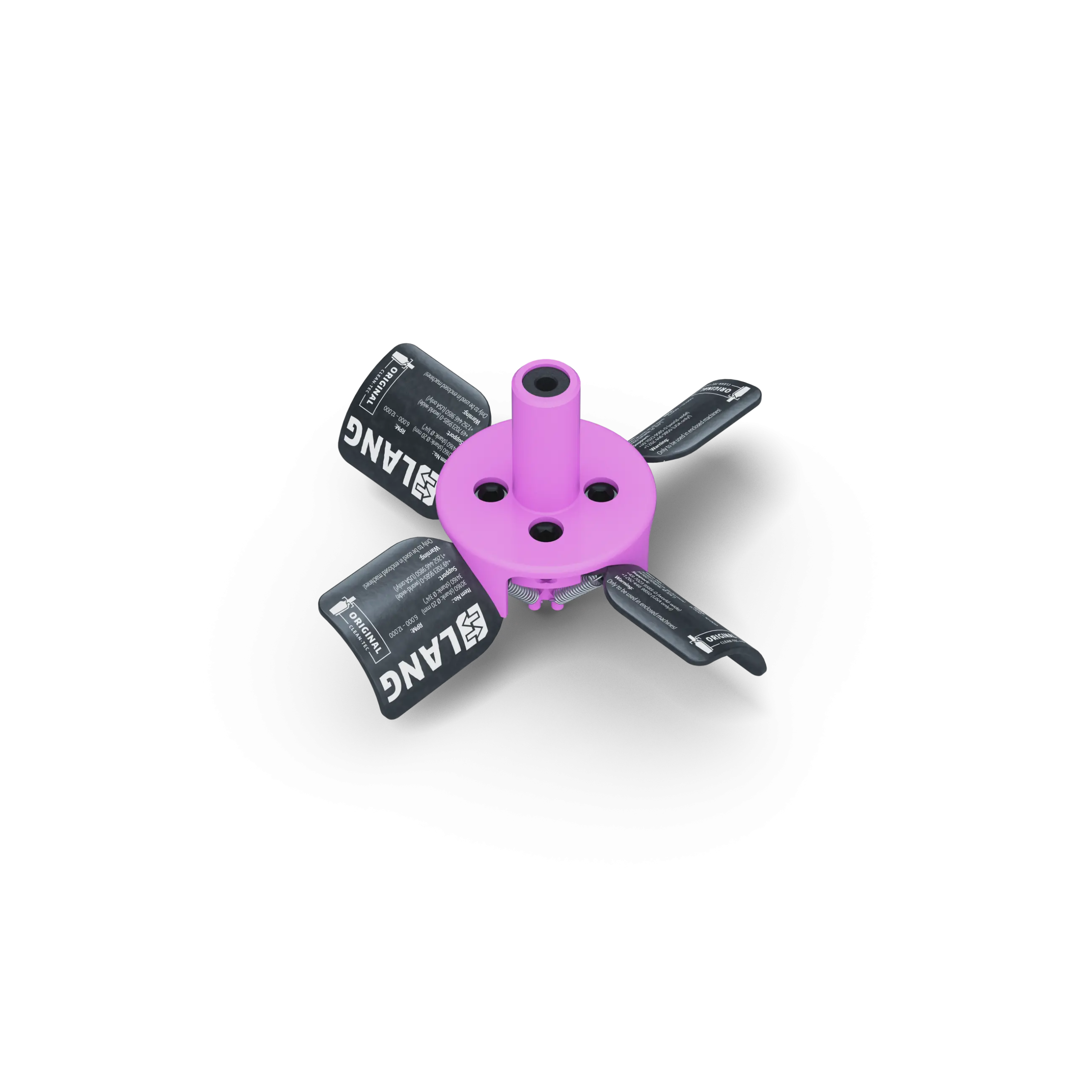

LANG – Clean•Tec Chip Fan – “The Original”

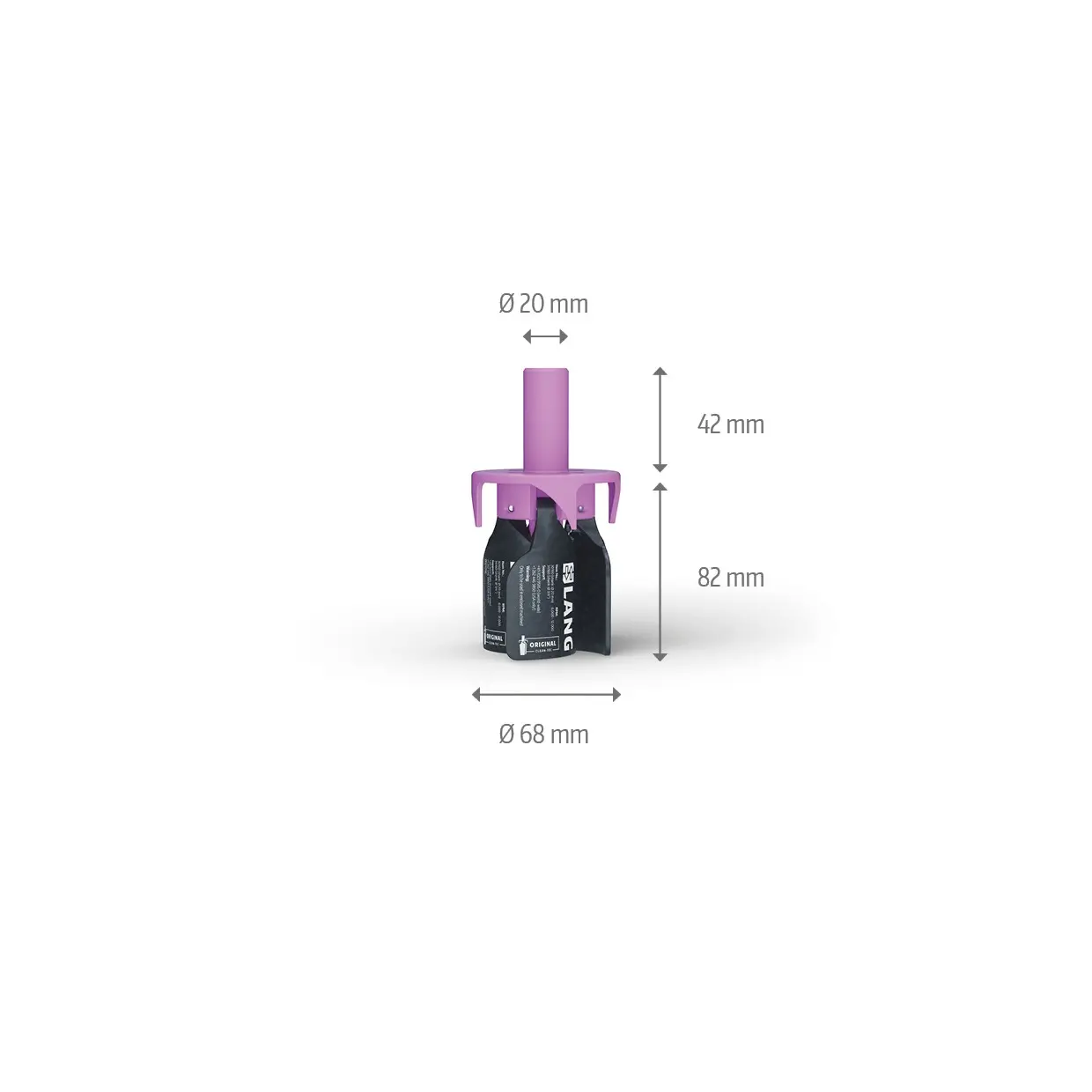

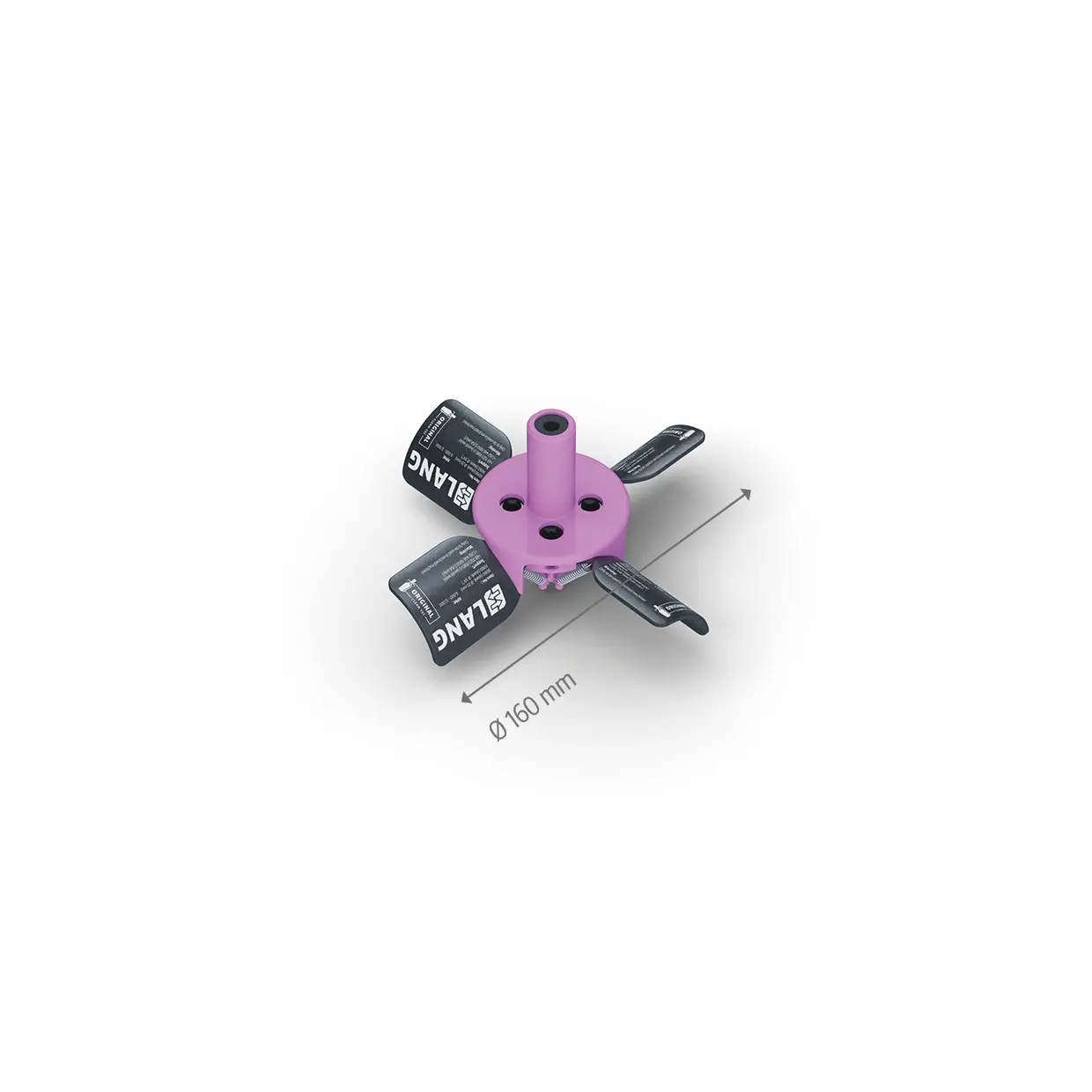

Diameter 160mm
20mm SHANK suits ER32 collet chucks
Also avail in 260mm & 330mm
CODE ; LG-30260; LG-30330
The automatic cleaning of workpieces and fixtures after the machining process

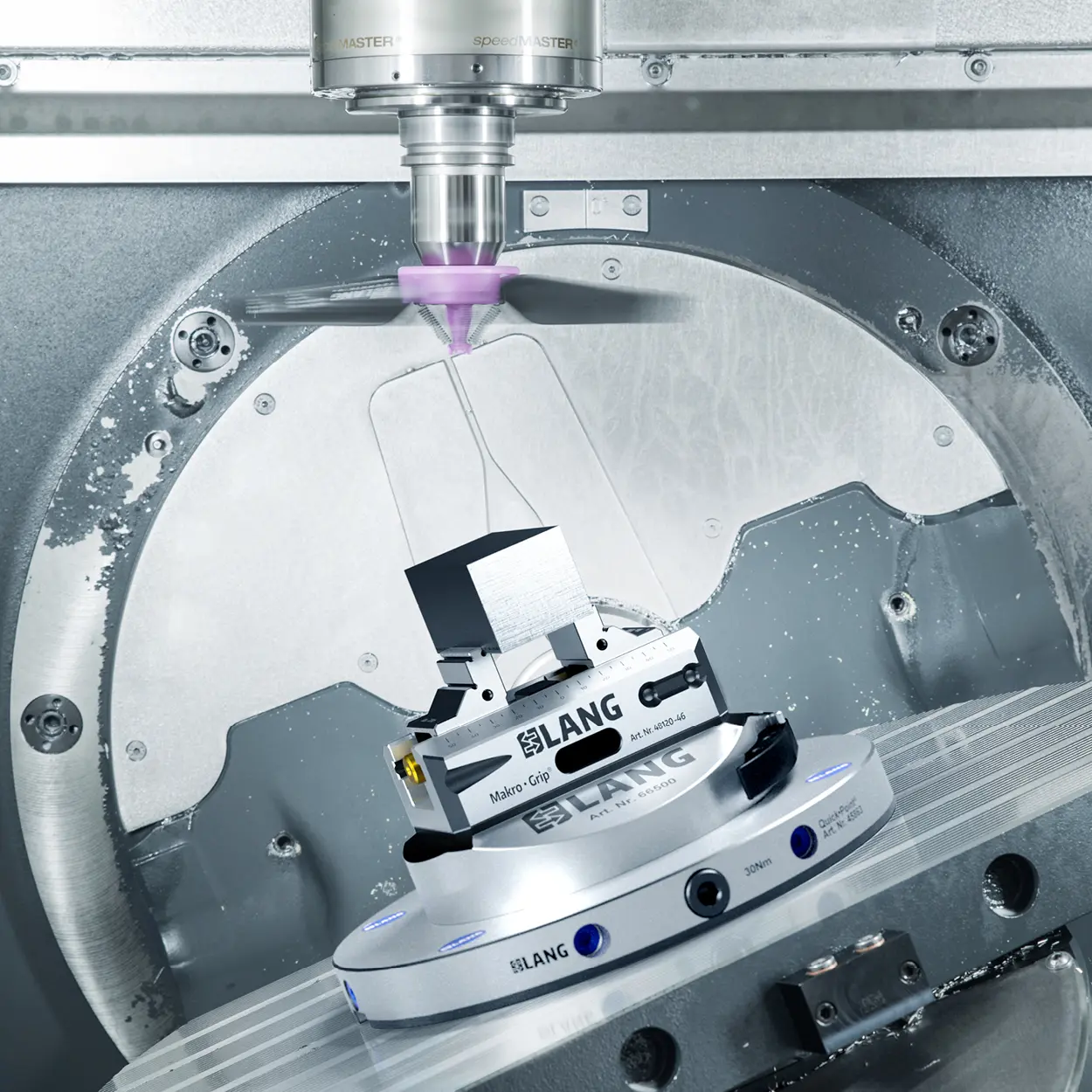

The Clean•Tec, “The Original” Chip Fan cleans the machine interior after machining processes, removing chips and coolant without the operator having to open the machine tool door. As a final step in the machining process, the Chip Fan is called up via the machine program and selected from the tool magazine.
Its blades are opened and closed by controlling the speed of the machine tool spindle. Especially in automated manufacturing the Clean•Tec is a must-have. Prior to the automatic unloading, the Chip Fan cleans all relevant interfaces between workholding fixtures and thus ensures a clean and reliable process.
| Weight | 0.1800 kg |
|---|---|
| Dimensions | Length 13.5cm x Width 10cm x Depth 10cm |
| barcode | |
| Additional Information | The smallest version of the Clean•Tec chip fan, whose body can be clamped in any standard Ø 20 mm tool holder, is particularly suitable for targeted cleaning tasks such as blowing out pocket holes and is more commonly used in smaller machines. By controlling the speed of the machine spindle, it opens and closes its blades and efficiently frees workpieces and fixtures from chips and cooling. Socket diameter Clean machining environment thanks to in-process cleaning Energy savings and no need for expensive compressed air Ideal for unmanned, automated manufacturing Flexible application possibilities due to different sizes Suitable for every standard tool holder Space savings in the tool magazine thanks to the slim design |
