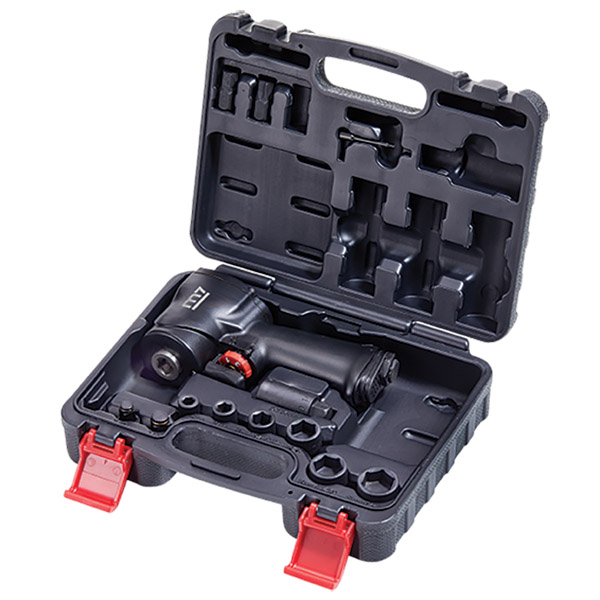

M7 STUBBY IMPACT WRENCH, PISTOL STYLE, COMBINATION 3/8″ & 1/2″ DR, 600 FT/LB

Product Code: M7-NC4600-KIT

$717.18$651.98 Ex. GST

Product Code: M7-NC4600-KIT SKU M7-NC4600-KIT Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

600 ft-lb Max torque Very compact, only 99mm length
Dual-size head drive allows a wider range of use
Lightweight, only 1.35kg
Includes: Square head drive: 3/8″ & 1/2″
Impact sockets: 13, 17, 19, 21mm
Impact extension bar: 14mm
Bit holders: 8mm & 0 mm
12mm Hex Bit
T60 Torx
Lubricating oil
Release pin
Square Drive: 3/8″, 1/2″
Bolt Capacity: 5/8″ (16mm)
Torque Range: 180-500 ft-lb / 244-678 Nm
Max Torque at 5 seconds: 600 ft-lb / 813 Nm
Free Speed: 9000 RPM
Air Requirement: 4.2 CFM / 90 PSI / 1/4″ Inlet
Overall Length: 97mm
Net Weight: 1.35kg
Sound Pressure: 96dBA
Vibration Level: 3.7m/s²

Additional information

Weight 1.6000 kg
barcode

4710586921489

Additional Information

Brand

M7
