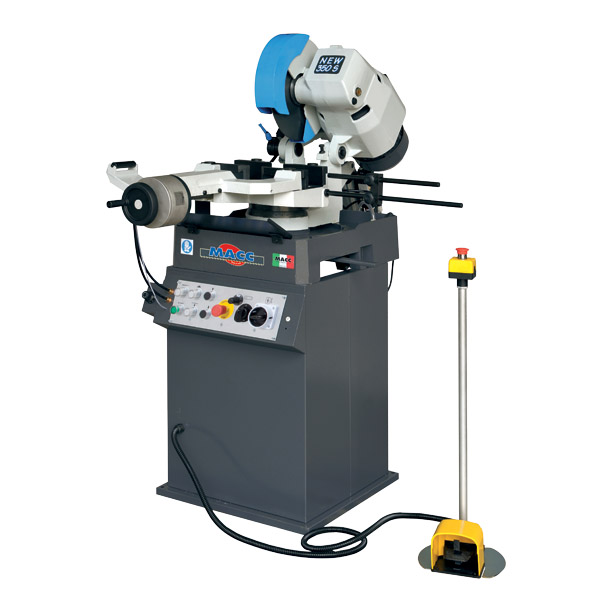

Italian made quality. Swivel head 45° left & right. Semi-Auto machine performs the following operations automatically during the cutting cycle: 1. Vice closes and blade motor starts. 2. Cutting head downstroke. 3. Return of head and blade motor stop. 4. Vice re-opens. Swivel head 45° left & right.
Quick locking double vice for burr free cutting.
2 speed machine. 20rpm for cutting stainless, 40rpm for mild steel.
Incorporated recirculating mechanical coolant system supplying coolant to both sides of the blade.
Compressor required to power vice.
Powered hydraulic down feed and return.
Adjustable material stop for repetitive production.
12 months warranty.
Comes complete with blade & stand.
Remote foot switch & emergency stop switch shown is available separately part# MCP-NEW350S-090
Motor: 3.2hp Three Phase (415V)
Blade Speed: 2 Speed 20 / 40rpm
Blade Size: 350mm
Blade Bore: 32mm
Weight: 280kg
90° Cutting Capacity:
Solid Round: 60mm
Hollow Round: 110mm
Square: 100mm
Rectangle: 120 x 80mm
45° Left & Right Cutting Capacity: Solid Round: 55mm
Hollow Round: 80mm
Square: 80mm
Rectangle: 80 x 80mm
| Weight | 310.0000 kg |
|---|---|
| barcode | 9328042032645 |
| Additional Information |
