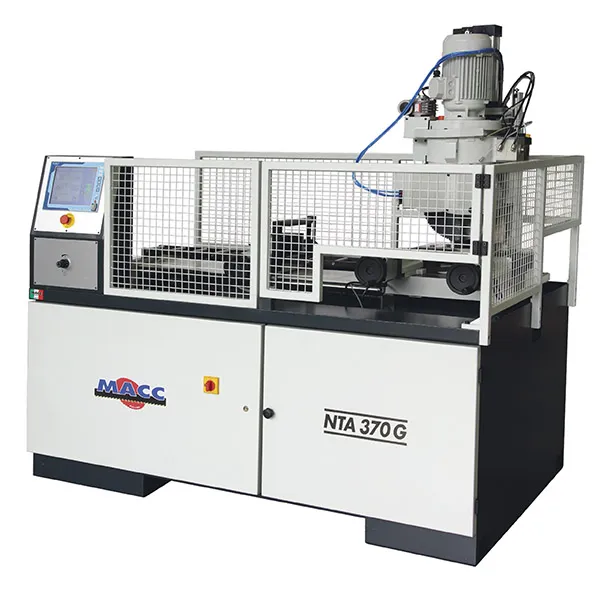

FEATURES:
Italian made quality.
Automatic Swivel head between 45° left & 45° right.
Programmable C.N.C. hydraulic machine performs the following operations automatically during the cutting cycle:
– Material feeds in
– Vice closes, blade motor starts & coolant is delivered
– Cutting head downstroke & feeding carriage returns
– Return of head, blade motor & coolant stop
– Vice re-opens
– Cycle repeats
Swivel head 0° to 45° to the right and left.
Recirculating coolant system with electric pump.
– Creates instant flow of coolant.
– Flood applied coolant creates a cooler cut, for increased finish quality & blade life.
Safety emergency stop switch.
Dual pneumatic vices.
Vice pressure regulator
Head lowering adjustment.
Guarded cutting area.
1.5m Infeed roller conveyor.
Comes complete with blade & stand.
Material feeder stroke: 1000mm
Overall dimensions: 3.5m x 1.2m x 1.9m
12 months warranty.
SPECIFICATIONS:
Motor: 4hp Three Phase (415V)
Blade Speed: Variable 0-100 mpm
Blade Size: 370mm
Blade Bore: 32mm
Weight: 900kg
