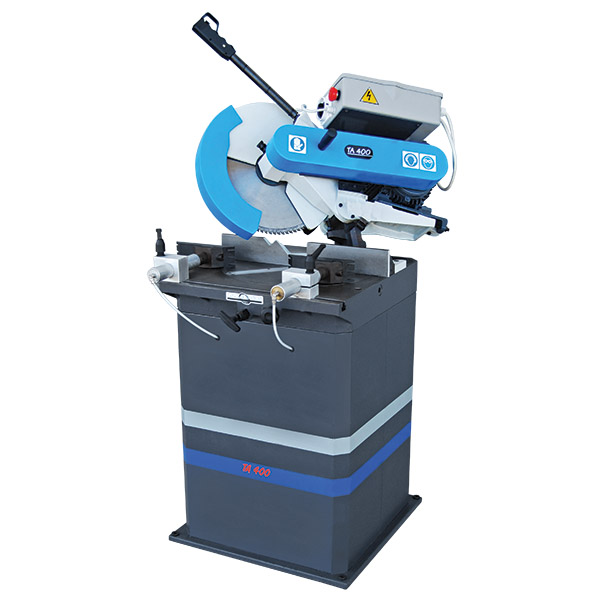

Italian made quality, extra heavy-duty.
Compound mitre, non-ferrous metal cutting saw.
Designed for cutting aluminium, copper, brass etc.
Swivel head 45° right and left.
Mitre head 45° left.
Trigger switch operation.
Twin manual sliding vices with teflon jaws.
Includes Stand
Fully recirculating coolant system.
As per TA400, with additional pneumatic features. 1. Two pneumatic spring return vices, automatically clamps the material when the trigger switch is pulled. 2. Supply of cutting fluid to the blade is also activated. 3. Material is then released upon return of cutting head, & fluid mist de-activated. Safety emergency stop switch.
12 months warranty.
Blade sold separately.
Compressor required to power vice.
Motor: 3hp Single Phase 240V
Blade Speed: Single Speed 3000rpm
Blade Size: 400mm
Blade Bore: 32mm
Weight: 190kg
90° Cutting Capacity: Solid Round: 60mm Hollow Round: 140mm Square: 110mm Rectangle
| Weight | 175.0000 kg |
|---|---|
| barcode | |
| Additional Information |
