Italian made quality.

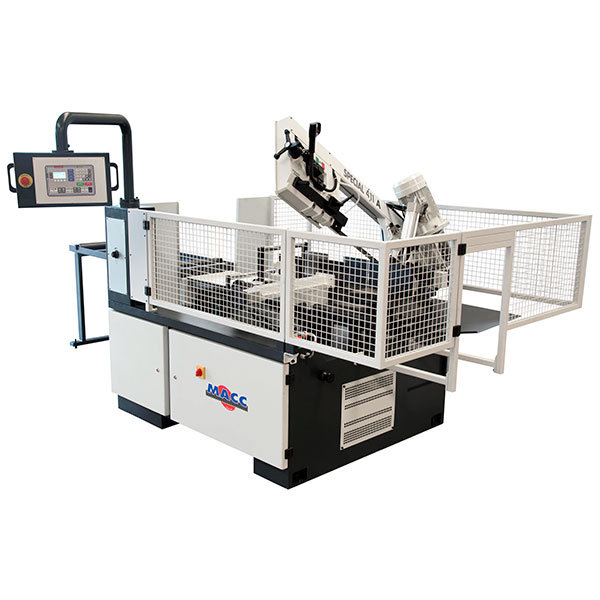

Fully guarded & fully automatic C.N.C. controlled machine.
Can be used in manual, semi-automatic & fully automatic operation.
2-way swivel head enables from 0° to 60° mitre cuts.
39 Programs, each with 50 steps with relevant piece-counter.
Digital control of quality and cut length.
Hydraulic material feeder with 600mm stroke & no limit of length.
Blade cleaning device and washdown hose.
Recirculating coolant system.
Safety emergency stop switch.
12 months warranty.
Comes complete with stand and blade.
Fully-Automatic Operation
Material feeding.
Fixed vice lock.
Rotation of the blade and delivery of the coolant, bow downfeed until the finishing of the cut, feeding carriage return to the fixed measure.
Bow return, blade revolution and coolant delivery stopping.
Vice opening.
Cycle repetition.
Motor: 2.15hp Three Phase (415V)
Blade Speed: Variable 20 – 90mpm
Blade Size: 3200mm x 27mm x 0.9mm
Bed Height: 850mm
Weight: 575kg
90° Cutting Capacity: Round: 300mm
Square: 280mm
Rectangle: 280 x 300mm
45° Right Cutting Capacity: Round: 240mm
Square: 220mm
Rectangle: 130 x 240mm
60° Right Cutting Capacity: Round: 140mm
Square: 140mm
Rectangle: 140 x 140mm
45° Left Cutting Capacity: Round: 180mm
Square: 160mm
Rectangle: 110 x 180mm
| Weight | 1150.0000 kg |
|---|---|
| barcode | 9328042033024 |
