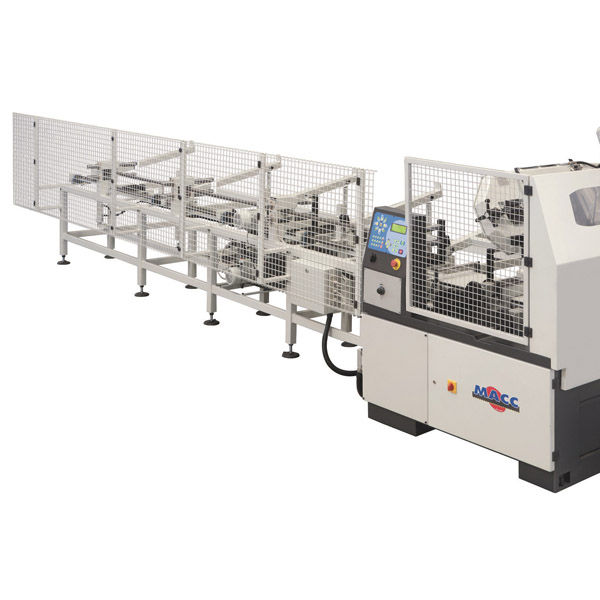

Material loader with inclined plane for automatically loading bundles of metal bars, tubes, solid bars, round, square and rectangular section in to bandsaws and circular saws. When the tail of the bar is no longer workable (scrap) the loader sends a new bar that expels the the previous scrap and positions the new bar for cutting the butting, the cycle is repeated until the bars positioned on the loader are exhausted.
The inclined plane has of length of 1025mm, with adjustment of the loading angle. It is possible for example to load 8 solid round bars Ø 120mm.
12 months warranty.
To suit MB-411AG-3, MB-391AVG-3, MB-702GA-3 and MB-NTA370G-3
LOADER CAPACITY:
Minimum material length 2m
Maximum material length 6m
Maximum load weight capacity 5000kg
Loader weight 1200kg ~
Power supply direct connection to the machine
LOADABLE MATERIAL:
Round tubes or solid sections
Min. Ø 16mm max ø 120mm
Square section tubes or solids
Min. 16 x 16mm Max. 100 x 100mm
Product does not include
bandsaw pictured.
