$168.52$153.20 Ex. GST

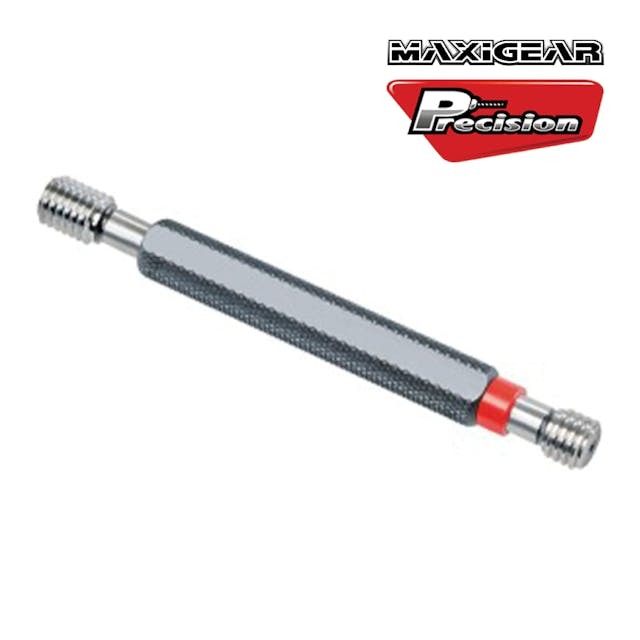

GAUGE THREAD PLUG PRECISION M14 x 2.0
GO-NO-GO Thread Plug Gauge
GO-NO-GO Thread Plug Gauge
Gauge Thread Plug Precision M14 x 2.0 6H
Precision Thread Plug Gauge
Metric ISO-Tread DIN13
Gauge Dimensions according to DIN ISO 1502
A thread limit plug gauge is a combination of go plug gauge and no-go plug gauge. The scrap side of the thread plug gauge is marked with a red ring.
The go end of the thread plug gauge must screw into the thread cut into a part by hand (without using excessive force). If unable to do so, the thread does not meet the requested standards (=scrap).
The scrap side of the thread plug gauge must not be able to be manually turned more than two turns into the cut thread (without using excessive force). If it can be screwed in more, the thread does not meet the requested standards (=scrap).
The reference temperature for parts and gauges is 20° Celsius.
A very wide range is available on request, including Thread Ring Gauges.
Seven Piece Set Contains:
1x Thread plug gauge, metric M3 x 0.5
1x Thread plug gauge, metric M4 x 0.7
1x Thread plug gauge, metric M5 x 0.8
1x Thread plug gauge, metric M6 x 1.0
1x Thread plug gauge, metric M8 x 1.25
1x Thread plug gauge, metric M10 x 1.5
1x Thread plug gauge, metric M12 x 1.75
