$928.33$843.94 Ex. GST

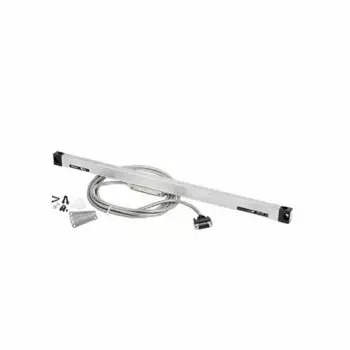

The Mitutoyo 539-278-30R Economy and Slim Spar Type AT116 Linear Scale has the following specifications:
Range: 0-18″/450mm
Signal Cable Length: 3.5m
Model: AT116-450
Features:
Suitable for milling machines, XY tables, jigs, etc.
Dimensionally compatible with AT113 linear scale units.
Connectable to the KA counter, KLD counter or PSU-200
Optional Accessories:
09AAB674A: Extension cable (2m / 80″)
09AAB674B: Extension cable (5m / 200″)
09AAB674C: Extension cable (7m / 280″)
174-183A 2-Axis KA Counter
174-185A 3-Axis KA Counter
Technical Specifications:
Effective Range: 4-60″/100-1500mm (20 models)
Resolution: 0.01 to 0.0001mm (.001″ to .000005″)
Accuracy: (20°C) (5+5L0/1000)?m
Output signal Two 90° phase-shifted sinusoidal signals
Maximum response speed: 50m/min
Signal output pitch: 20µm
Scale reference point Output in 50mm pitch
Protection level: IP53
Operating temperature: 0 to 45°C
| barcode | |
|---|---|
| Additional Information | Effective Range: 18" / 450 mm |
