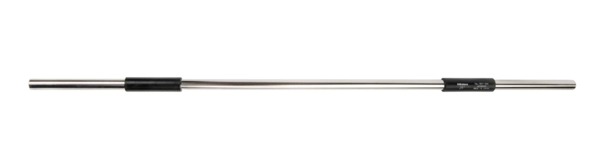

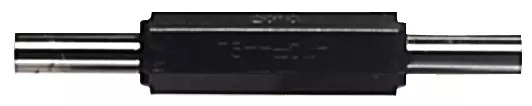

Mitutoyo 62In Micrometer Standard 167-426

Product Code: 167-426

$643.73$585.21 Ex. GST

Product Code: 167-426 SKU 167-426 Categories ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

167-426 Mitutoyo Micrometer Standard: 62″

The Mitutoyo 167-426 micrometer standard has the following specifications:

Length: 62″
Accuracy: +/- .0004″
Diameter: .470″
Features:

Available in Inch and Metric lengths
Available in lengths of from 1-79″ or 25-1000mm as well as sets
Supplied in fitted carton for standards up to 20″/500mm in length
Supplied in wooden case for standards over 21″/525mm in length
Used for the zero point setting of outside micrometers.
Flat and lapped measuring faces.
Heat insulating handle to prevent expansion due to body temperature.

Additional information

Weight 0.0000 kg
Dimensions Length 157.48cm x Width cm x Depth cm
barcode
Additional Information

Delivered: In a wooden box
Length (L): 62"
Diameter (D): 0.47"
Accuracy: ±0.0004"
Flatness: 0.000012"
Parallelism: 0.00008"
Measuring face: Micro-lap finish

Brand

Mitutoyo
