Mitutoyo 650Mm 167-126

Product Code: 167-126

$194.47$176.79 Ex. GST

Product Code: 167-126 SKU 167-126 Categories ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

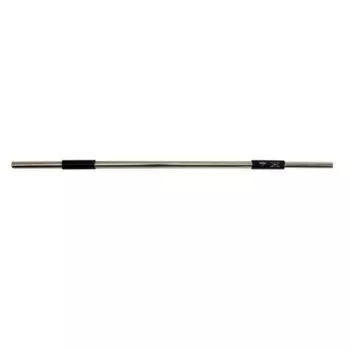

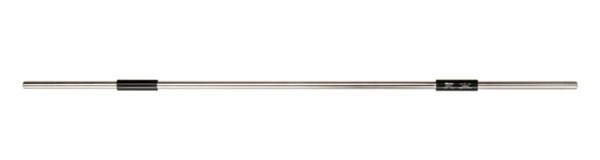

167-126 Mitutoyo Micrometer Standard: 650mm

The Mitutoyo 167-126 micrometer standard has the following specifications:

Length: 650mm
Accuracy: +/- .014mm
Diameter: 11.9mm
Features:

Available in Inch and Metric lengths from 1-79″ or 25-1000mm as well as sets
Supplied in fitted carton for standards up to 20″/500mm in length
Supplied in wooden case for standards over 21″/525mm in length

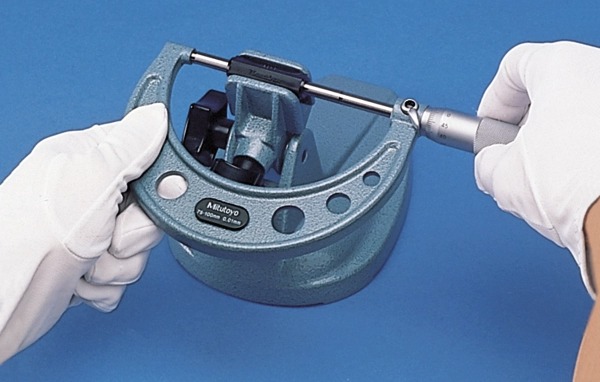

Used for the zero point setting of outside micrometers.
Flat and lapped measuring faces.
Heat insulating handle to prevent expansion due to body temperature.

Additional information

Weight 0.0000 kg
Dimensions Length 65cm x Width cm x Depth cm
barcode
Additional Information

Delivered: In a wooden box
Inch-Metric: Metric
Length (L): 650 mm
Diameter (D): 11.9 mm
Accuracy: ±14 µm
Flatness: 0.3 µm
Parallelism: 2 µm
Measuring face: Micro-lap finish

Brand

Mitutoyo
