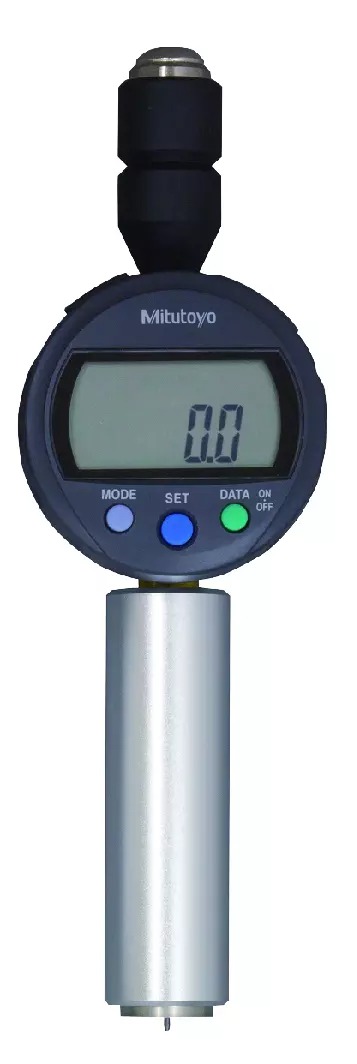

Mitutoyo 811-332-10 Shore Hardness Tester

Product Code: 811-332-10

$1,672.00$1,520.00 Ex. GST

Product Code: 811-332-10 SKU 811-332-10 Category

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

These compact digital/dial durometers in the Shore A scale can test a range of different materials and offer you the following benefits:
You can use them for testing the hardness of the materials including soft rubber, elastomers, natural rubber, casting resin, neoprene, polyesters, soft PVC, leather, etc.
Features:
Digital / Dial Durometers are suitable for testing the nature of the following materials – natural rubber, neoprene, polyesters, P.V.C., leather, nitrite rubber, wax, vinyl, cellulose acetates, glass polystyrene, etc.
Units are available in both Shore A and Shore D scales, and will test a wide variety of applications The Digital Durometer is provided with data hold function, permitting the operator to make an error-free reading on the LCD screen
The Dial Durometer is provided with a peak retaining hand for error-free reading

Additional information

Weight 0.3100 kg
Dimensions Length cm x Width 19.3cm x Depth 6cm
barcode
Additional Information

Model: HH-332
Shore Scale: Shore A
Display: Digital
Indenter b: ø 1.25 mm
Indenter d: ø 0.79 mm
θ: 35°
Pressure foot a: ø 3 mm
Pressure foot f: ø 18 mm
Indenter protrusion: 2.5 mm
Spring force WE, WA, WD: WA = 550 + 75 HA [mN]
Dimensions (WxDxH): 193 x 60 x 29.5 mm
Mass: 0.31 kg
Connector cable for: HH-300 Series
PIN: Flat
U-WAVE-T: 02AZD790F
USB-ITN: 06AFM380F
DP-1VA (264-505): 959149
IT-016U 264-016-10 Hardmatic table: 937387

Brand

Mitutoyo
