Mitutoyo 925Mm 167-137

Product Code: 167-137

$323.13$293.75 Ex. GST

Product Code: 167-137 SKU 167-137 Categories ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

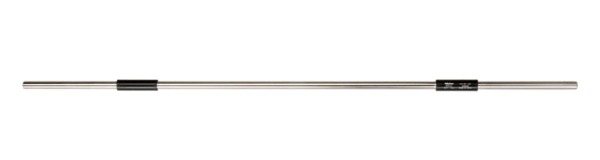

167-137 Mitutoyo Micrometer Standard: 925mm

The Mitutoyo 167-137 micrometer standard has the following specifications:

Length: 925mm
Accuracy: +/- .0195mm
Diameter: 11.9mm
Features:

Available in Inch and Metric lengths from 1-79″ or 25-1000mm as well as sets
Supplied in fitted carton for standards up to 20″/500mm in length
Supplied in wooden case for standards over 21″/525mm in length

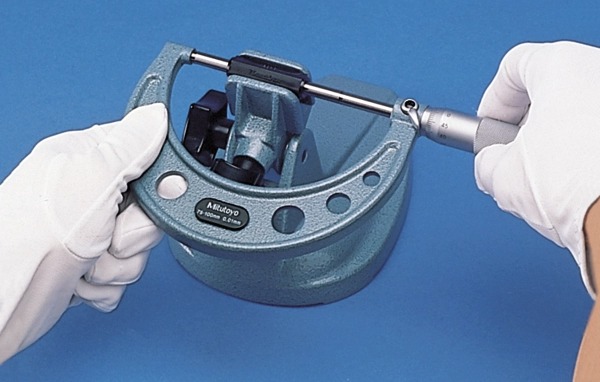

Used for the zero point setting of outside micrometers.
Flat and lapped measuring faces.
Heat insulating handle to prevent expansion due to body temperature.

Additional information

Weight 0.0000 kg
Dimensions Length 92.5cm x Width cm x Depth cm
barcode
Additional Information

Delivered: In a wooden box
Inch-Metric: Metric
Length (L): 925 mm
Diameter (D): 11.9 mm
Accuracy: ±19.5 µm
Flatness: 0.3 µm
Parallelism: 2 µm
Measuring face: Micro-lap finish
