Mitutoyo 950Mm 167-138

Product Code: 167-138

$334.19$303.81 Ex. GST

Product Code: 167-138 SKU 167-138 Categories ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

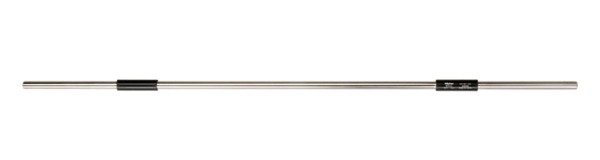

167-138 Mitutoyo Micrometer Standard: 950mm

The Mitutoyo 167-138 micrometer standard has the following specifications:

Length: 950mm
Accuracy: +/- .020mm
Diameter: 11.9mm
Features:

Available in Inch and Metric lengths from 1-79″ or 25-1000mm as well as sets
Supplied in fitted carton for standards up to 20″/500mm in length
Supplied in wooden case for standards over 21″/525mm in length
Used for the zero point setting of outside micrometers.
Flat and lapped measuring faces.
Heat insulating handle to prevent expansion due to body temperature.

Additional information

Weight 0.0000 kg
Dimensions Length 95cm x Width cm x Depth cm
barcode
Additional Information

Delivered: In a wooden box
Inch-Metric: Metric
Length (L): 950 mm
Diameter (D): 11.9 mm
Accuracy: ±20 µm
Flatness: 0.3 µm
Parallelism: 2 µm
Measuring face: Micro-lap finish

Brand

Mitutoyo
